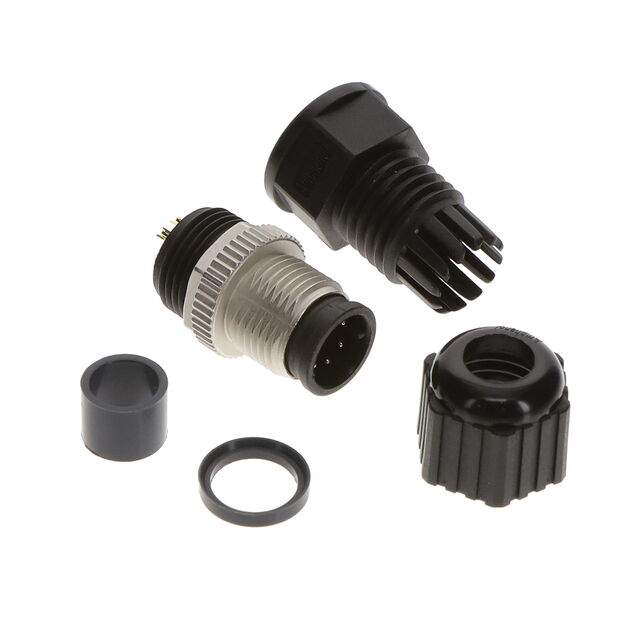

M12A-06BMMA-SL8001

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 2A, 06 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT, SCREW THREAD, SOLDER, FIELD

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 2A, 06 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT, SCREW THREAD, SOLDER, FIELD

Technical Specifications

Parameters and characteristics for this part

Part	Primary Material	Backshell Material, Plating	Mounting Type	Shell Size - Insert	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Features	Ingress Protection	Orientation	Termination	Cable Opening [diameter]	Cable Opening [diameter]	Insert Material	Color	Contact Finish - Mating	Current Rating (Amps)	Number of Positions	Connector Type	Voltage Rating
Amphenol LTW M12A-06BMMA-SR7001	Plastic	Thermoplastic	Free Hanging (In-Line) Right Angle	M12-6	Copper Alloy	-40 °C	105 ░C	Unshielded	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	A	Screw	4.5 mm 6.5 mm	0.177 in 0.256 in	Thermoplastic	Black	Gold	2 A	6	Male Pins Plug	30 VAC
Amphenol LTW M12A-06BMMA-SL8001	Plastic	Thermoplastic	Free Hanging (In-Line)	M12-6	Copper Alloy	-40 °C	105 ░C	Unshielded	Backshell Coupling Nut	IP68 - Dust Tight Waterproof	A	Screw	4.5 mm 6.5 mm	0.177 in 0.256 in	Thermoplastic	Black	Gold	2 A	6	Male Pins Plug	30 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Plug, Male Pins Screw
