T4131012081-000
ActiveTE Connectivity Raychem Cable Protection

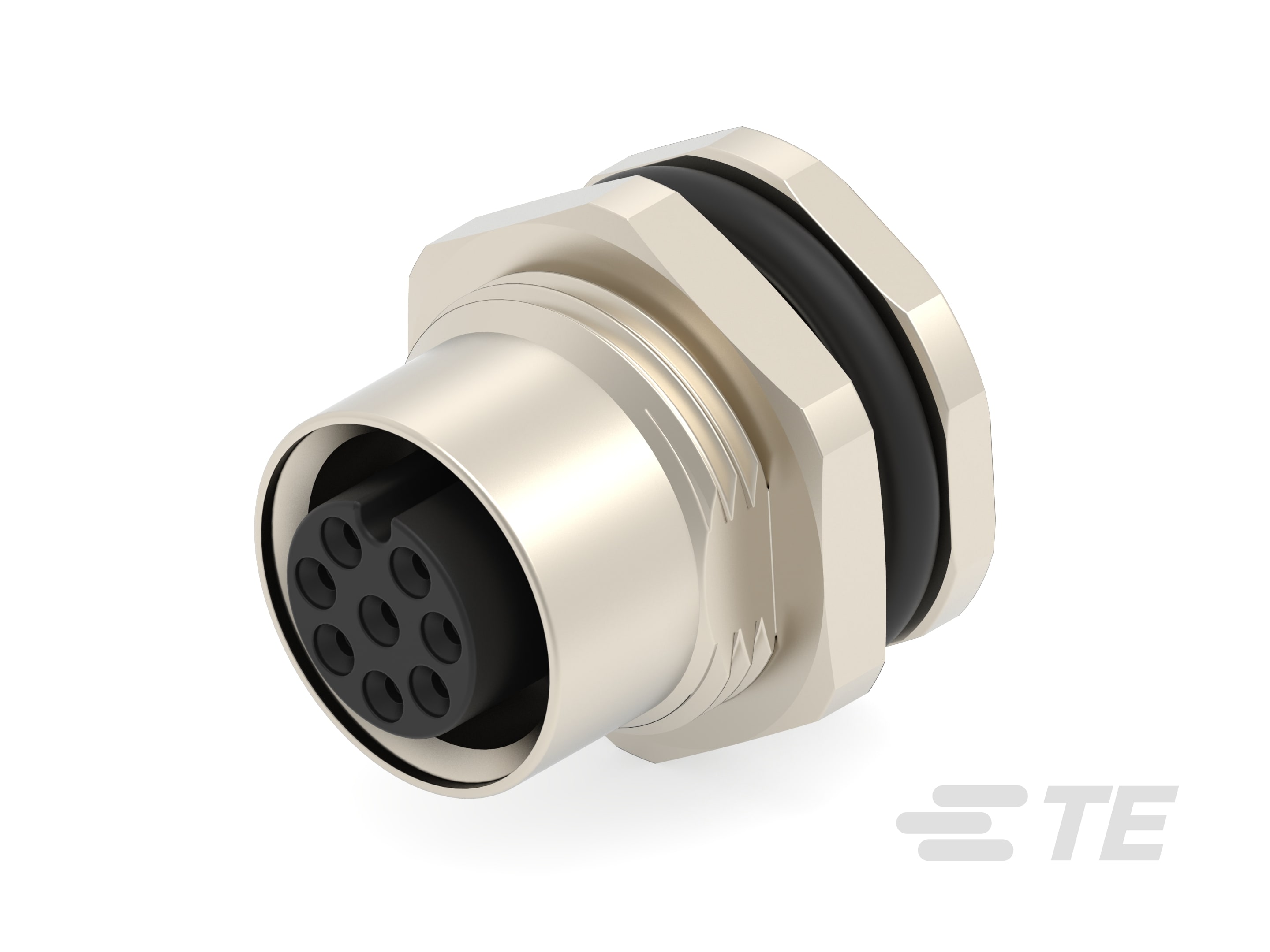

CONN RCPT FMALE 8POS SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4131012081-000
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT FMALE 8POS SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T4131012081-000 |
|---|---|
| Applications | Industrial |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 2 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shell Size - Insert | M12-8 |
| Shielding | Unshielded |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.38 | |
| 10 | $ 11.91 | |||
| 25 | $ 11.06 | |||
| 50 | $ 10.45 | |||
| 100 | $ 9.88 | |||
| 250 | $ 9.18 | |||
| 500 | $ 8.68 | |||
| 1000 | $ 8.28 | |||
Description
General part information
T41310 Series
8 Position Circular Connector Receptacle, Female Sockets Solder Cup
