82418 8775000

Active

Belden Inc.

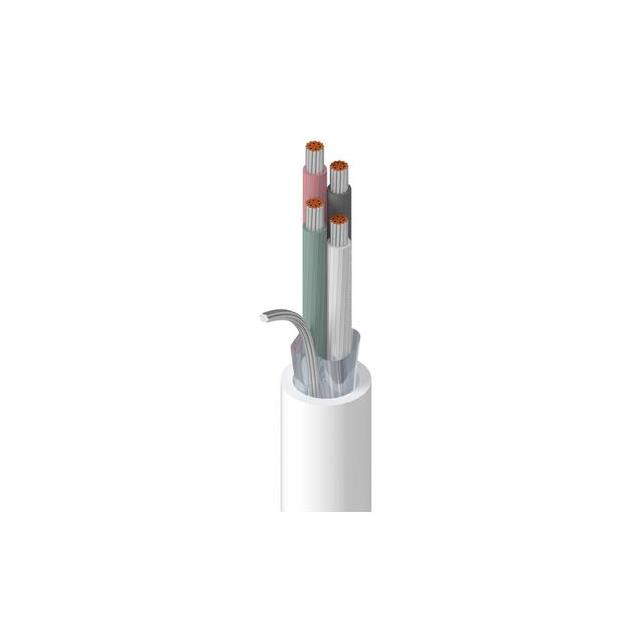

CABLE 4COND 18AWG NATURAL

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 18AWG NATURAL

Technical Specifications

Parameters and characteristics for this part

Specification	82418 8775000

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Natural
Number of Conductors	4
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Cable Type	Shield Type	Jacket Color	Number of Conductors	Shield Coverage	Jacket (Insulation) Material	Voltage	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Length	Length	Shield Material	Conductor Material
Belden Inc. 82418 8771000	18 AWG	19	30 AWG	Fluorinated Ethylene-Propylene (FEP)	Multi-Conductor	Foil	Natural	4	100 %	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	300 V	Drain Wire	0.015 in	0.381 mm	Audio Control Instrumentation	1000 ft	304.8 m	Aluminum	Copper Tinned
Belden Inc. 82418 877U1000	18 AWG	19	30 AWG	Fluorinated Ethylene-Propylene (FEP)	Multi-Conductor	Foil	Natural	4	100 %	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	300 V	Drain Wire	0.015 in	0.381 mm	Audio Control Instrumentation	1000 ft	304.8 m	Aluminum	Copper Tinned
Belden Inc. 82418 8775000	18 AWG	19	30 AWG	Fluorinated Ethylene-Propylene (FEP)	Multi-Conductor	Foil	Natural	4	100 %	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	300 V	Drain Wire	0.015 in	0.381 mm	Audio Control Instrumentation			Aluminum	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 5.52

General part information

4 Conductor Multi-Conductor Cable Natural 18 AWG Foil 5000' (1524.0m)
