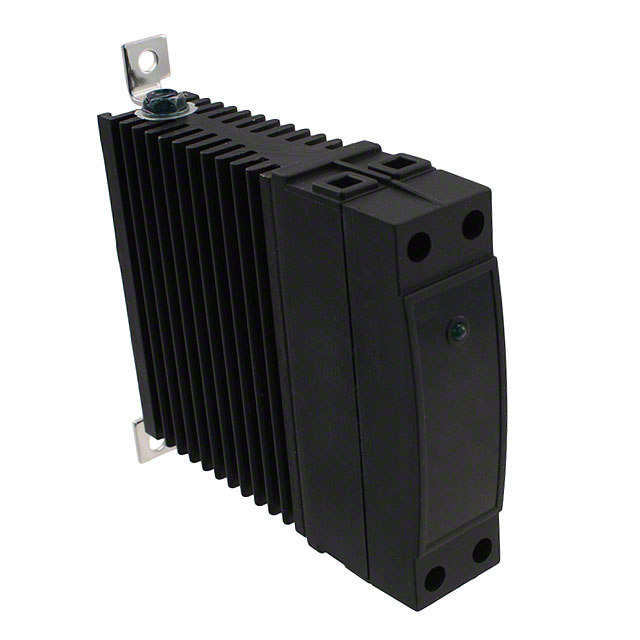

CKRD4830

Active

Sensata-Crydom

SSR RELAY SPST-NO 30A 48-530V

Search across all available documentation for this part.

Active

Sensata-Crydom

SSR RELAY SPST-NO 30A 48-530V

Technical Specifications

Parameters and characteristics for this part

Specification	CKRD4830

Approval Agency	TUV, CSA, UR, CE
Load Current	30 A
Mounting Type	DIN Rail
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Output Type	AC, Zero Cross
Package / Case	SSR with Integrated Heat Sink
Termination Style	Screw Terminal
Voltage - Input [Max]	32 V
Voltage - Input [Min]	4 V

Part	Output Type	Approval Agency	Package / Case	Voltage - Input [Min]	Voltage - Input [Max]	Load Current	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination Style
Sensata-Crydom CKRD4810EP	AC Zero Cross	CE CSA TUV UR	SSR with Integrated Heat Sink	15 V	32 V	10 A	-40 °C	80 C	DIN Rail	Screw Terminal
Sensata-Crydom CKRD4830-10	AC	CE CSA TUV UR	SSR with Integrated Heat Sink	4 V	32 V	30 A	-40 °C	80 C	DIN Rail	Screw Terminal
Sensata-Crydom CKRD4830	AC Zero Cross	CE CSA TUV UR	SSR with Integrated Heat Sink	4 V	32 V	30 A	-40 °C	80 C	DIN Rail	Screw Terminal
Sensata-Crydom CKRD4820	AC Zero Cross	CE CSA TUV UR	SSR with Integrated Heat Sink	4 V	32 V	20 A	-40 °C	80 C	DIN Rail	Screw Terminal
Sensata-Crydom CKRD4820EP	AC Zero Cross	CE CSA TUV UR	SSR with Integrated Heat Sink	15 V	32 V	20 A	-40 °C	80 C	DIN Rail	Screw Terminal
Sensata-Crydom CKRD4810P	AC Zero Cross	CE CSA TUV UR	SSR with Integrated Heat Sink	4 V	32 V	10 A	-40 °C	80 C	DIN Rail	Screw Terminal
