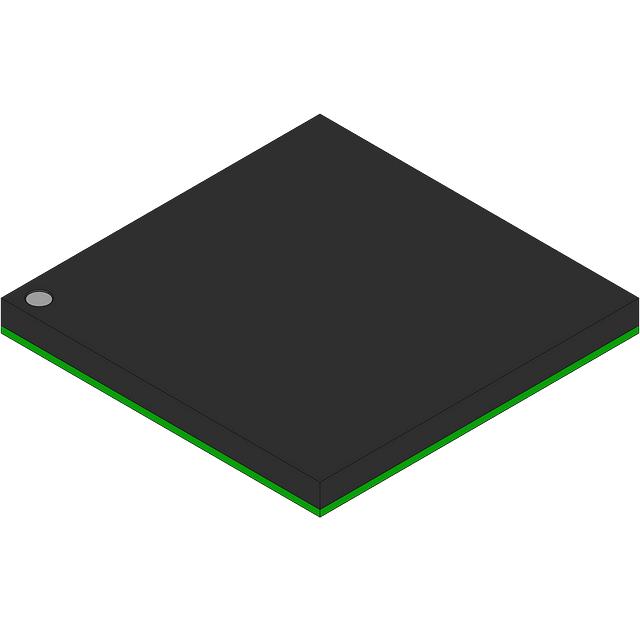

MAC7131MVM40

Active

Freescale Semiconductor

RISC MICROCONTROLLER, 32 BIT, FL

Search across all available documentation for this part.

Active

Freescale Semiconductor

RISC MICROCONTROLLER, 32 BIT, FL

Technical Specifications

Parameters and characteristics commom to parts in this series

MICROCONTROLLER, 32 BIT, FLASH,

Part	Package / Case	Mounting Type	Program Memory Size	Operating Temperature [Min]	Operating Temperature [Max]	Oscillator Type	Core Size	EEPROM Size	Supplier Device Package	Connectivity	Number of I/O	Peripherals	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Core Processor	Speed	Data Converters [custom]	Data Converters [custom]	Data Converters [custom]	Program Memory Type	Data Converters	RAM Size
Freescale Semiconductor MAC7121MPV50	112-LQFP	Surface Mount	512 KB	-40 °C	125 °C	Internal	32-Bit Single-Core	32 K	112-LQFP (20x20)	CANbus, EBI/EMI, I2C, SCI, SPI	85	DMA, POR	2.35 V	2.75 V	ARM7TDMI-S	50 MHz	8	16	10	FLASH
Freescale Semiconductor MAC7131VVF50R2	144-TFBGA	Surface Mount	512 KB	-40 °C	105 °C	Internal	32-Bit Single-Core	32 K	144-MBGA, 7x7	CANbus, EBI/EMI, I2C, SCI, SPI	128	DMA, POR	2.35 V	2.75 V	ARM7TDMI-S	50 MHz				FLASH	10b, 32x8
Freescale Semiconductor MAC7111VPV50	144-LQFP	Surface Mount	512 KB	-40 °C	105 °C	Internal	32-Bit Single-Core	32 K	144-LQFP (20x20)	CANbus, EBI/EMI, I2C, SCI, SPI	112	DMA, POR	2.35 V	5.5 V	ARM7®	50 MHz	8	16	10	FLASH
Freescale Semiconductor MAC7131MVM40	208-BGA	Surface Mount	512 KB	-40 °C	125 °C	Internal	32-Bit Single-Core	32 K	208-BGA (17x17)	CANbus, EBI/EMI, I2C, SCI, SPI	128	DMA, POR	2.35 V	2.75 V	ARM7TDMI-S	40 MHz				FLASH	10b, 32x8
Freescale Semiconductor MAC7112MPV40	112-LQFP	Surface Mount	256 KB	-40 °C	125 °C	Internal	32-Bit Single-Core	32 K	112-LQFP (20x20)	CANbus, EBI/EMI, I2C, SCI, SPI	112	DMA, POR	2.35 V	2.75 V	ARM7TDMI-S	40 MHz	8	16	10	FLASH		16 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	13	$ 24.95

General part information

ARM7TDMI-S - Microcontroller IC 32-Bit Single-Core 40MHz 512KB (512K x 8) FLASH 208-BGA (17x17)

Technical documentation and resources

No documents available
