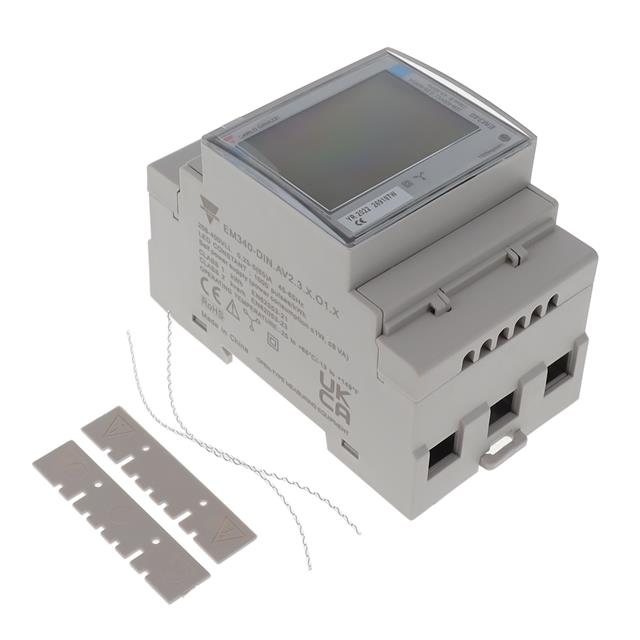

EM340DINAV23XO1X

Active

CARLO GAVAZZI

ENERGY METER 3-PHASE REV.0

Search across all available documentation for this part.

Active

CARLO GAVAZZI

ENERGY METER 3-PHASE REV.0

Technical Specifications

Parameters and characteristics for this part

Specification	EM340DINAV23XO1X

Display Characters - Height [z]	7 mm
Display Characters - Height [z]	0.276 in
Display Type	LCD - Black Characters, White Backlight
Ingress Protection	IP51 - Dust Protected
Measuring Range [Max]	65 Hz, 400 VAC, 65 A
Measuring Range [Min]	45 Hz, 5 A, 208 VAC
Mounting Type	DIN Rail
Number of Characters Per Row [custom]	8
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-25 °C
Output Type	Analog
Termination Style	Screw Terminal
Type	Energy Monitor

Part	Mounting Type	Measuring Range [Min]	Measuring Range [Max]	Display Characters - Height [z]	Display Characters - Height [z]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Characters Per Row [custom]	Display Type	Termination Style	Output Type	Ingress Protection
CARLO GAVAZZI EM340DINAV23XO1PFB	DIN Rail	5 A 45 Hz 208 VAC	65 Hz 65 A 400 VAC	7 mm	0.276 in	Energy Monitor	55 °C	-25 °C	8	LCD - Black Characters White Backlight	Screw Terminal	Analog	IP51 - Dust Protected
CARLO GAVAZZI EM340DINAV23XO1X	DIN Rail	5 A 45 Hz 208 VAC	65 Hz 65 A 400 VAC	7 mm	0.276 in	Energy Monitor	65 °C	-25 °C	8	LCD - Black Characters White Backlight	Screw Terminal	Analog	IP51 - Dust Protected
CARLO GAVAZZI EM340DINAV23XS1X	DIN Rail	5 A 45 Hz 208 VAC	65 Hz 65 A 400 VAC	7 mm	0.276 in	Energy Monitor	65 °C	-25 °C	8	LCD - Black Characters White Backlight	Screw Terminal	Analog	IP51 - Dust Protected

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Energy Monitor LCD - Black Characters, White Backlight Display DIN Rail
