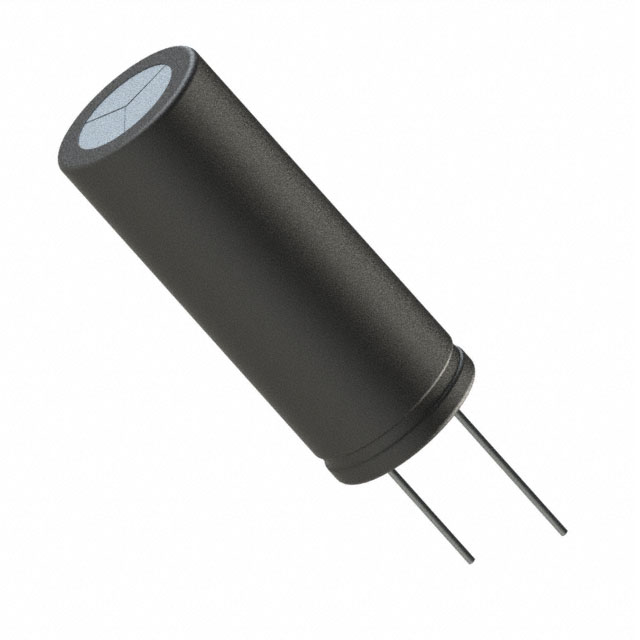

ESH157M450AN7AA

Active

KEMET

ELECTROLYTIC CAPACITOR, 150 ΜF, 450 V, ± 20%, RADIAL LEADED, 2000 HOURS @ 105°C, POLAR

Search across all available documentation for this part.

Active

KEMET

ELECTROLYTIC CAPACITOR, 150 ΜF, 450 V, ± 20%, RADIAL LEADED, 2000 HOURS @ 105°C, POLAR

Technical Specifications

Parameters and characteristics for this part

Specification	ESH157M450AN7AA

Applications	General Purpose
Capacitance	150 µF
Height - Seated (Max) [Max] [z]	1.85 in
Height - Seated (Max) [Max] [z]	47 mm
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	1.04 A
Ripple Current @ Low Frequency	650 mA
Size / Dimension [diameter]	0.709 "
Size / Dimension [diameter]	18 mm
Tolerance	20 %
Voltage - Rated	450 V

Part	Applications	Package / Case	Capacitance	Mounting Type	Polarization	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]
KEMET ESH157M450AN7AA	General Purpose	Radial Can	150 µF	Through Hole	Polar	450 V	-25 °C	105 ░C	20 %	1.04 A	1.85 in	47 mm	2000 Hrs	7.5 mm	0.295 in	650 mA	0.709 "	18 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

150 µF 450 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
