A6RV-102RF
ActiveOmron Electronics Inc-EMC Div
SWITCH ROTARY DIP BCD 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
A6RV-102RF
ActiveOmron Electronics Inc-EMC Div
SWITCH ROTARY DIP BCD 0.025A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A6RV-102RF | A6R Series |
|---|---|---|
| Actuator Level | Flush, Recessed | Flush, Recessed, Raised |
| Actuator Type | Rotary for Tool | Rotary for Tool, Rotary with Shaft |
| Circuit | BCD | BCD, Hexadecimal |
| Current Rating (Amps) | 25 mA | 25 mA |
| Electrical Life | 5000 Steps | 5000 Steps |
| Features | Sealed | Sealed |
| Height Above Board | 9.9 mm | 4.5 - 12 mm |
| Height Above Board | 0.39 in | 0.177 - 0.472 in |
| Height Above Board | - | 0.465 " |
| Height Above Board | - | 11.8 mm |
| Length [x] | 0.386 " | 0.386 " |
| Length [x] | 9.8 mm | 9.8 mm |
| Mounting Type | Through Hole, Right Angle | Through Hole, Surface Mount, Through Hole, Right Angle |
| Number of Positions | 10 | 10 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Pitch | Full | Full |
| Pitch [x] | 0.1 in | 0.1 in |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Termination Style | PC Pin | PC Pin, Gull Wing |
| Voltage Rating | 24 VDC | 24 VDC |
| Washable | False | False |
A6R Series
SWITCH ROTARY DIP BCD 0.025A 24V
| Part | Voltage Rating | Termination Style | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Height Above Board | Height Above Board | Electrical Life | Actuator Level | Washable | Circuit | Pitch [x] | Pitch | Pitch [x] | Length [x] | Length [x] | Current Rating (Amps) | Actuator Type | Features | Mounting Type | Number of Positions | Height Above Board [z] | Height Above Board [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div A6R-101RF | 24 VDC | PC Pin | 10 | -25 °C | 80 C | 0.177 in | 4.5 mm | 5000 Steps | Flush, Recessed | BCD | 0.1 in | Full | 2.54 mm | 0.386 " | 9.8 mm | 25 mA | Rotary for Tool | Sealed | Through Hole | ||||
Omron Electronics Inc-EMC Div A6RS-161RF | 24 VDC | Gull Wing | -25 °C | 80 C | 0.185 in | 4.7 mm | 5000 Steps | Flush, Recessed | Hexadecimal | 0.1 in | Full | 2.54 mm | 0.386 " | 9.8 mm | 25 mA | Rotary for Tool | Surface Mount | 16 | |||||
Omron Electronics Inc-EMC Div A6R-101RS | 24 VDC | PC Pin | 10 | -25 °C | 80 C | 5000 Steps | Raised | BCD | 0.1 in | Full | 2.54 mm | 0.386 " | 9.8 mm | 25 mA | Rotary with Shaft | Sealed | Through Hole | 0.465 " | 11.8 mm | ||||
Omron Electronics Inc-EMC Div A6R-162RF | 24 VDC | PC Pin | -25 °C | 80 C | 0.177 in | 4.5 mm | 5000 Steps | Flush, Recessed | Hexadecimal | 0.1 in | Full | 2.54 mm | 0.386 " | 9.8 mm | 25 mA | Rotary for Tool | Sealed | Through Hole | 16 | ||||
Omron Electronics Inc-EMC Div A6RS-162RF-P | 24 VDC | Gull Wing | -25 °C | 80 C | 0.185 in | 4.7 mm | 5000 Steps | Flush, Recessed | Hexadecimal | 0.1 in | Full | 2.54 mm | 0.386 " | 9.8 mm | 25 mA | Rotary for Tool | Surface Mount | 16 | |||||
Omron Electronics Inc-EMC Div A6R-161RS | 24 VDC | PC Pin | -25 °C | 80 C | 5000 Steps | Raised | Hexadecimal | 0.1 in | Full | 2.54 mm | 0.386 " | 9.8 mm | 25 mA | Rotary with Shaft | Sealed | Through Hole | 16 | 0.465 " | 11.8 mm | ||||
Omron Electronics Inc-EMC Div A6RS-161RF-P | 24 VDC | Gull Wing | -25 °C | 80 C | 0.185 in | 4.7 mm | 5000 Steps | Flush, Recessed | Hexadecimal | 0.1 in | Full | 2.54 mm | 0.386 " | 9.8 mm | 25 mA | Rotary for Tool | Surface Mount | 16 | |||||
Omron Electronics Inc-EMC Div A6RV-102RF | 24 VDC | PC Pin | 10 | -25 °C | 80 C | 0.39 in | 9.9 mm | 5000 Steps | Flush, Recessed | BCD | 0.1 in | Full | 2.54 mm | 0.386 " | 9.8 mm | 25 mA | Rotary for Tool | Sealed | Through Hole, Right Angle | ||||
Omron Electronics Inc-EMC Div A6RV-162RF | 24 VDC | PC Pin | -25 °C | 80 C | 0.39 in | 9.9 mm | 5000 Steps | Flush, Recessed | Hexadecimal | 0.1 in | Full | 2.54 mm | 0.386 " | 9.8 mm | 25 mA | Rotary for Tool | Sealed | Through Hole, Right Angle | 16 | ||||
Omron Electronics Inc-EMC Div A6RV-161RF | 24 VDC | PC Pin | -25 °C | 80 C | 0.39 in | 9.9 mm | 5000 Steps | Flush, Recessed | Hexadecimal | 0.1 in | Full | 2.54 mm | 0.386 " | 9.8 mm | 25 mA | Rotary for Tool | Sealed | Through Hole, Right Angle | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.50 | |
| 10 | $ 5.04 | |||
| 48 | $ 4.31 | |||
| 144 | $ 3.32 | |||
| 288 | $ 3.22 | |||
| 528 | $ 3.21 | |||
Description
General part information
A6R Series

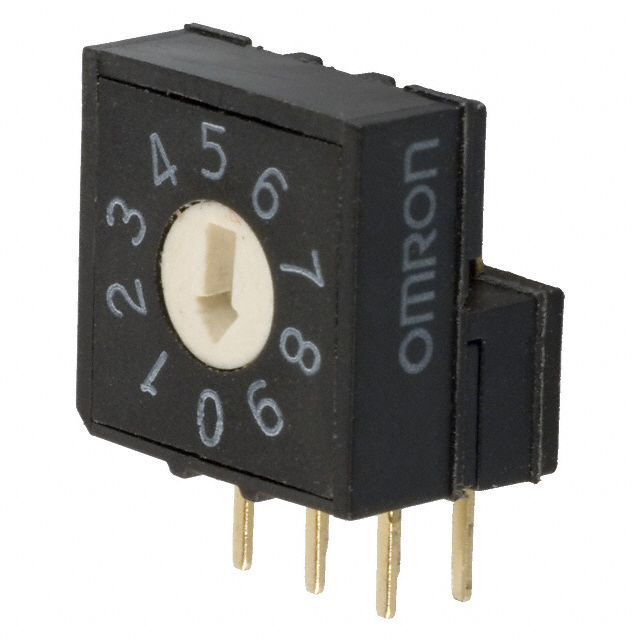

Dip Switch BCD 10 Position Through Hole, Right Angle Rotary for Tool Actuator 25mA 24VDC
