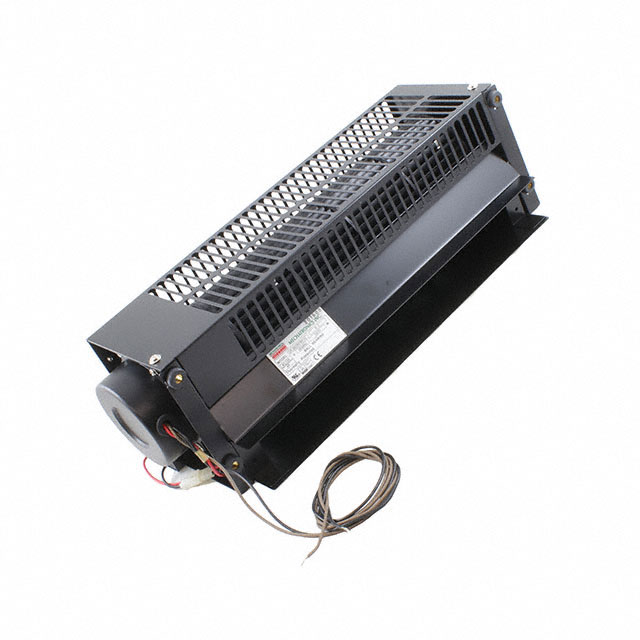

UF9029CBP12H-L

Active

Mechatronics Fan Group

FAN BLWR CF 120VAC 420X150X130MM

Search across all available documentation for this part.

Active

Mechatronics Fan Group

FAN BLWR CF 120VAC 420X150X130MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower, Cross Flow 120VAC Rectangular - 420mm L x 130mm H Ball 177.1 CFM (4.96m³/min) 2 Wire Leads

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	UF9029CBP12H-L	UF9029 Series

Air Flow	4.96 m³/min	4.96 m³/min
Air Flow	177.1 CFM	177.1 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	270 mA	270 mA
Fan Type	Blower, Cross Flow	Blower, Cross Flow
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Aluminum	Aluminum
Material - Frame	Steel	Steel
Noise	46 dB(A)	46 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	31 W	31 W
RPM	1560 RPM	1560 RPM
Size / Dimension [x]	420 mm	420 mm
Size / Dimension [y]	130 mm	130 mm
Static Pressure	0.13 in H2O	0.13 in H2O
Static Pressure	32.4 Pa	32.4 Pa
Termination	2 Wire Leads	2 Wire Leads
Voltage - Rated	120 VAC	120 - 230 VAC
Weight	6.6 lbs	6.6 lbs
Weight	3 kg	3 kg
Width [y]	125 mm	125 mm

FAN BLWR CF 230VAC 420X150X130MM

Part	Air Flow	Air Flow	Width [y]	Bearing Type	Features	Termination	Material - Blade	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated	Material - Frame	RPM	Fan Type	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Noise	Static Pressure	Static Pressure	Weight	Weight	Current Rating (Amps)
Mechatronics Fan Group UF9029CBP23H-L	177.1 CFM	4.96 m³/min	125 mm	Ball	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	2 Wire Leads	Aluminum	31 W	70 °C	70 °C	-40 °C	-40 °C	230 VAC	Steel	1560 RPM	Blower, Cross Flow	CE, cUL, TUV, UL	420 mm	130 mm	46 dB(A)	0.13 in H2O	32.4 Pa	6.6 lbs	3 kg
Mechatronics Fan Group UF9029CBP12H-L	177.1 CFM	4.96 m³/min	125 mm	Ball	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	2 Wire Leads	Aluminum	31 W	70 °C	70 °C	-40 °C	-40 °C	120 VAC	Steel	1560 RPM	Blower, Cross Flow	CE, cUL, TUV, UL	420 mm	130 mm	46 dB(A)	0.13 in H2O	32.4 Pa	6.6 lbs	3 kg	270 mA
