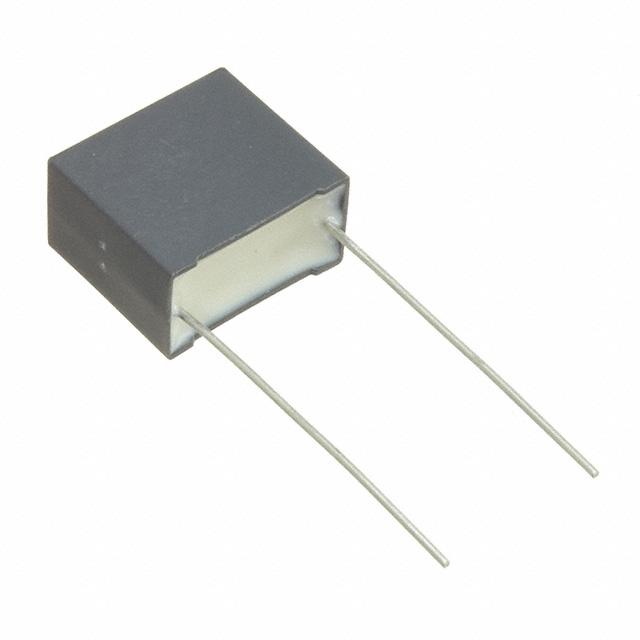

R75GI41004000J

Active

KEMET

CAP FILM 1UF 5% 160VDC RAD

Search across all available documentation for this part.

Active

KEMET

CAP FILM 1UF 5% 160VDC RAD

Technical Specifications

Parameters and characteristics for this part

Specification	R75GI41004000J

Applications	Automotive, High Frequency, Switching, High Pulse, DV/DT
Capacitance	1 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	16.1 mm
Height - Seated (Max) [Max]	0.634 in
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	18 mm
Size / Dimension [x]	0.709 in
Size / Dimension [y]	10 mm
Size / Dimension [y]	0.394 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	90 V
Voltage Rating - DC	160 V

Part	Dielectric Material	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Tolerance	ESR (Equivalent Series Resistance)	Mounting Type	Ratings	Capacitance	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - DC	Lead Spacing	Lead Spacing	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
KEMET R75GI368050H6J	Metallized Polypropylene (PP)	13 mm	0.512 in	18 mm	0.709 in	Radial	5 %	7 mOhms	Through Hole	AEC-Q200	680 nF	Automotive High Frequency Switching High Pulse DV/DT	-55 °C	125 °C	90 V	12.1 mm	0.476 "	160 V	15 mm	0.591 in	PC Pins
KEMET R75GI41004000J	Metallized Polypropylene (PP)			18 mm		Radial	5 %		Through Hole	AEC-Q200	1 µF	Automotive High Frequency Switching High Pulse DV/DT	-55 °C	105 ░C	90 V			160 V	15 mm	0.591 in	PC Pins	16.1 mm	0.634 in	10 mm	0.394 in	0.709 in
KEMET R75GI333050H0J	Metallized Polypropylene (PP)	6 mm		18 mm		Radial	5 %	14.5 mOhms	Through Hole	AEC-Q200	0.33 µF	Automotive High Frequency Switching High Pulse DV/DT	-55 °C	125 °C	90 V	12.1 mm	0.476 "	160 V	15 mm	0.591 in	PC Pins				0.236 in	0.709 in
KEMET R75GI34704000J	Metallized Polypropylene (PP)	7.5 mm		18 mm		Radial	5 %		Through Hole	AEC-Q200	0.47 µF	Automotive High Frequency Switching High Pulse DV/DT	-55 °C	105 ░C	90 V			160 V	15 mm	0.591 in	PC Pins				0.295 in	0.709 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 µF Film Capacitor 90V 160V Polypropylene (PP), Metallized Radial
