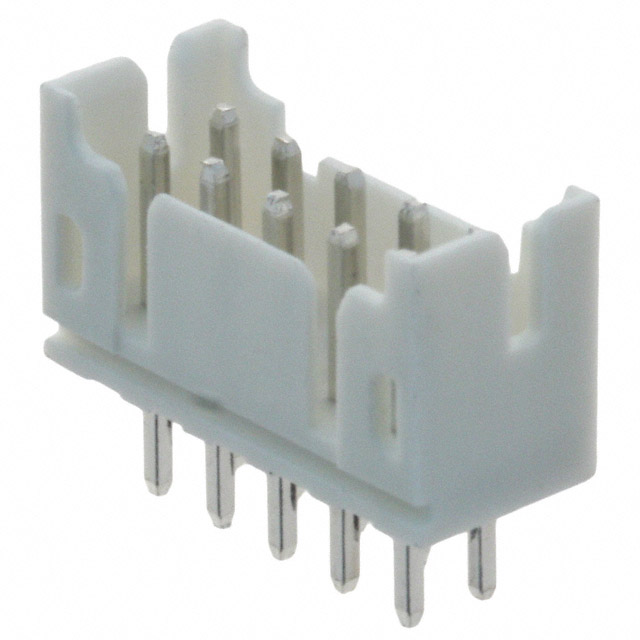

Specification	SWR204-NRTN-D05-ST-GA

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Post	0.118 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	3 A
Fastening Type	Detent Lock
Insulation Color	Gray
Insulation Height	0.256 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch - Mating	0.079 in
Row Spacing - Mating	0.079 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	50 V

SWR204 Series

Part	Insulation Height	Insulation Color	Insulation Material	Number of Rows	Contact Length - Post	Contact Material	Contact Finish - Post	Contact Type	Shrouding	Voltage Rating	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Row Spacing - Mating	Contact Finish - Mating	Style	Material Flammability Rating	Termination	Current Rating (Per Contact)	Number of Positions Loaded	Number of Positions	Contact Shape	Connector Type	Fastening Type	Pitch - Mating
Sullins Connector Solutions SWR204-NRTN-D02-ST-GA	0.256 in	Gray	Nylon 6/6 Polyamide (PA66)	2	0.118 in	Brass	Tin	Male Pin	Shrouded - 4 Wall	50 V	Through Hole	85 °C	-25 °C	0.079 in	Tin	Board Cable/Wire	UL94 V-0	Solder	3 A	All	4	Square	Header	Detent Lock	0.079 in
Sullins Connector Solutions SWR204-NRTN-D04-ST-GA	0.256 in	Gray	Nylon 6/6 Polyamide (PA66)	2	0.118 in	Brass	Tin	Male Pin	Shrouded - 4 Wall	50 V	Through Hole	85 °C	-25 °C	0.079 in	Tin	Board Cable/Wire	UL94 V-0	Solder	3 A	All	8	Square	Header	Detent Lock	0.079 in
Sullins Connector Solutions SWR204-NRTN-D03-ST-GA	0.256 in	Gray	Nylon 6/6 Polyamide (PA66)	2	0.118 in	Brass	Tin	Male Pin	Shrouded - 4 Wall	50 V	Through Hole	85 °C	-25 °C	0.079 in	Tin	Board Cable/Wire	UL94 V-0	Solder	3 A	All	6	Square	Header	Detent Lock	0.079 in
Sullins Connector Solutions SWR204-NRTN-D15-RA-GA	0.197 in	Gray	Nylon 6/6 Polyamide (PA66)	2	0.118 in	Brass	Tin	Male Pin	Shrouded - 4 Wall	50 V	Right Angle Through Hole	85 °C	-25 °C	0.079 in	Tin	Board Cable/Wire	UL94 V-0	Solder	3 A	All	30	Square	Header	Detent Lock	0.079 in
Sullins Connector Solutions SWR204-NRTN-D07-RA-GA	0.197 in	Gray	Nylon 6/6 Polyamide (PA66)	2	0.118 in	Brass	Tin	Male Pin	Shrouded - 4 Wall	50 V	Right Angle Through Hole	85 °C	-25 °C	0.079 in	Tin	Board Cable/Wire	UL94 V-0	Solder	3 A	All	14	Square	Header	Detent Lock	0.079 in
Sullins Connector Solutions SWR204-NRTN-D11-RA-GA	0.197 in	Gray	Nylon 6/6 Polyamide (PA66)	2	0.118 in	Brass	Tin	Male Pin	Shrouded - 4 Wall	50 V	Right Angle Through Hole	85 °C	-25 °C	0.079 in	Tin	Board Cable/Wire	UL94 V-0	Solder	3 A	All	22	Square	Header	Detent Lock	0.079 in
Sullins Connector Solutions SWR204-NRTN-D05-ST-GA	0.256 in	Gray	Nylon 6/6 Polyamide (PA66)	2	0.118 in	Brass	Tin	Male Pin	Shrouded - 4 Wall	50 V	Through Hole	85 °C	-25 °C	0.079 in	Tin	Board Cable/Wire	UL94 V-0	Solder	3 A	All	10	Square	Header	Detent Lock	0.079 in
Sullins Connector Solutions SWR204-NRTN-D13-RA-GA	0.197 in	Gray	Nylon 6/6 Polyamide (PA66)	2	0.118 in	Brass	Tin	Male Pin	Shrouded - 4 Wall	50 V	Right Angle Through Hole	85 °C	-25 °C	0.079 in	Tin	Board Cable/Wire	UL94 V-0	Solder	3 A	All	26	Square	Header	Detent Lock	0.079 in
Sullins Connector Solutions SWR204-NRTN-D12-RA-GA	0.197 in	Gray	Nylon 6/6 Polyamide (PA66)	2	0.118 in	Brass	Tin	Male Pin	Shrouded - 4 Wall	50 V	Right Angle Through Hole	85 °C	-25 °C	0.079 in	Tin	Board Cable/Wire	UL94 V-0	Solder	3 A	All	24 pos	Square	Header	Detent Lock	0.079 in
Sullins Connector Solutions SWR204-NRTN-D10-ST-GA	0.256 in	Gray	Nylon 6/6 Polyamide (PA66)	2	0.118 in	Brass	Tin	Male Pin	Shrouded - 4 Wall	50 V	Through Hole	85 °C	-25 °C	0.079 in	Tin	Board Cable/Wire	UL94 V-0	Solder	3 A	All	20	Square	Header	Detent Lock	0.079 in
