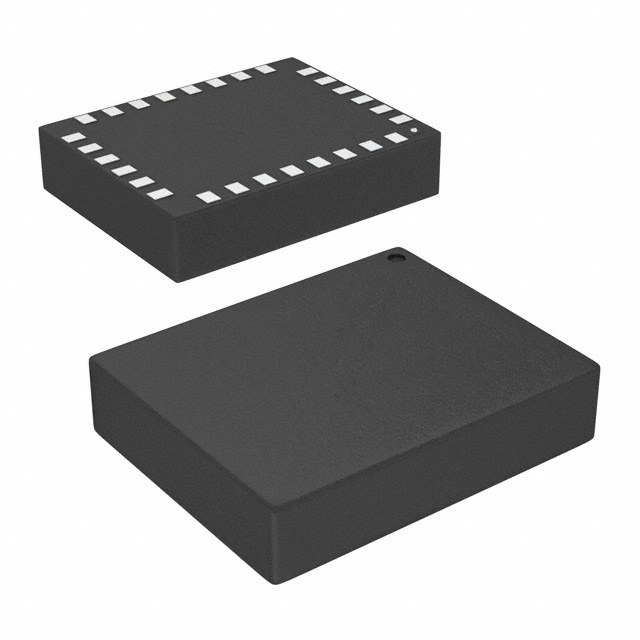

LSM330DLCTR
ObsoleteIMU ACCEL/GYRO I2C/SPI 28LGA
Deep-Dive with AI
Search across all available documentation for this part.
LSM330DLCTR
ObsoleteIMU ACCEL/GYRO I2C/SPI 28LGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LSM330DLCTR |
|---|---|
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | I2C, SPI |
| Package / Case | 28-TFLGA Module |
| Sensor Type | Accelerometer, Gyroscope, 6 Axis |
| Supplier Device Package | 28-LGA (4x5) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
STEVAL-MKI123V1 Series
The STEVAL-MKI122V1 is an adapter board designed to facilitate the evaluation of MEMS devices in the LSM330DLC product family. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application.
The STEVAL-MKI122V1 can be plugged into a standard DIL 24 socket. The adapter provides the complete LSM330DLC pinout and comes ready-to-use with the required decoupling capacitors on the VDDpower supply line.
This adapter is supported by the STEVAL-MKI109V2 and STEVAL-MKI109V3 motherboards which include a high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico GUI), or dedicated software routines for customized applications.
Documents
Technical documentation and resources
