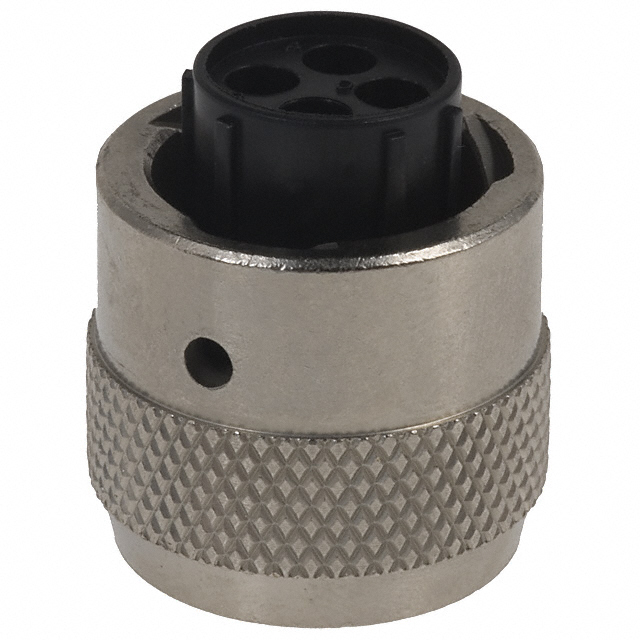

UTG6-10-4SN

Active

Souriau-Sunbank by Eaton

CONN PLUG HSG FMALE 4POS INLINE

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN PLUG HSG FMALE 4POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	UTG6-10-4SN

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	10-4
Shielding	Unshielded
Type	For Female Sockets

Part	Insert Material	Shell Material	Mounting Type	Features	Connector Type	Contact Size	Orientation	Type	Note	Contact Shape	Shell Finish	Shielding	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Shell Size - Insert	Contact Type	Fastening Type	Material Flammability Rating
Souriau-Sunbank by Eaton UTG6-10-4SN	Thermoplastic Glass Filled	Brass	Free Hanging (In-Line)	Coupling Nut	Plug Housing	16	N	For Female Sockets	Contacts Not Included	Circular	Nickel	Unshielded	Silver	-55 °C	125 °C	4	10-4	Crimp	Bayonet Lock	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
