BC2AAL

Active

MPD (Memory Protection Devices)

BATT HOLDER AA 2 CELL SOLDER LUG

Search across all available documentation for this part.

Active

MPD (Memory Protection Devices)

BATT HOLDER AA 2 CELL SOLDER LUG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

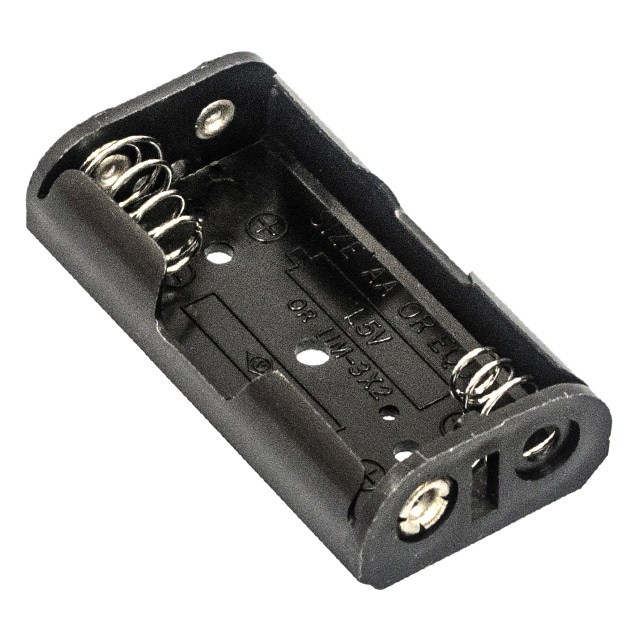

Battery Holder (Open) AA 2 Cell Solder Lug

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BC2AAL	BC2AA Series

Battery Cell Size	AA	AA, AAA
Battery Type, Function	Cylindrical, Holder	Cylindrical, Holder
Height Above Board	-	0.512 in
Height Above Board	-	13 mm
Height Above Board	-	0.591 "
Height Above Board	-	15.01 mm
Mounting Type	Chassis Mount	Chassis Mount
Number of Cells	2	2
Style	Holder (Open)	Holder (Open)
Termination Style	Solder Lug	9 Volt Snap Fasteners, Solder Lug, Wire Leads - 6" (152.4mm), PC Pin

BATTERY HOLDER AA 2 CELL SNAP

Part	Battery Cell Size	Style	Battery Type, Function	Mounting Type	Termination Style	Number of Cells	Height Above Board [z]	Height Above Board [z]	Height Above Board	Height Above Board
MPD (Memory Protection Devices) BC2AASF	AA	Holder (Open)	Cylindrical, Holder	Chassis Mount	9 Volt Snap Fasteners	2
MPD (Memory Protection Devices) BC2AAAL	AAA	Holder (Open)	Cylindrical, Holder	Chassis Mount	Solder Lug	2
MPD (Memory Protection Devices) BC2AAAW	AAA	Holder (Open)	Cylindrical, Holder	Chassis Mount	Wire Leads - 6" (152.4mm)	2
MPD (Memory Protection Devices) BC2AAAPC	AAA	Holder (Open)	Cylindrical, Holder		PC Pin	2	0.512 in	13 mm
MPD (Memory Protection Devices) BC2AAPC	AA	Holder (Open)	Cylindrical, Holder		PC Pin	2			0.591 "	15.01 mm
MPD (Memory Protection Devices) BC2AAL	AA	Holder (Open)	Cylindrical, Holder	Chassis Mount	Solder Lug	2
MPD (Memory Protection Devices) BC2AAW	AA	Holder (Open)	Cylindrical, Holder	Chassis Mount	Wire Leads - 6" (152.4mm)	2
