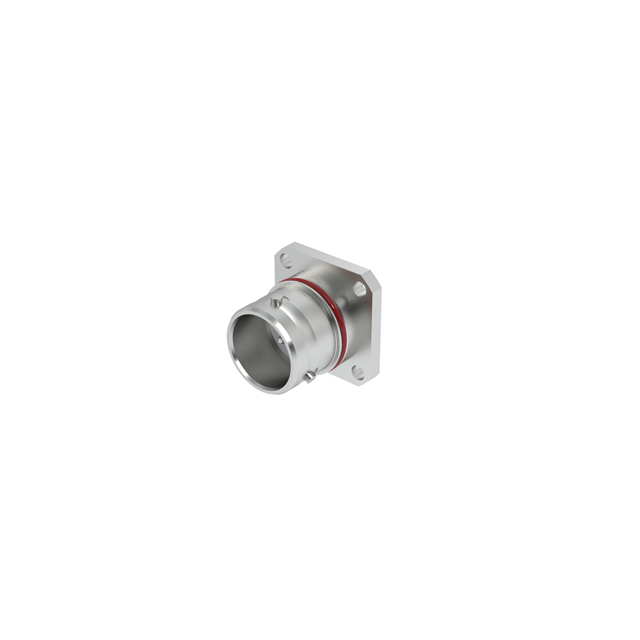

R184405007

Radiall USA, Inc.

QLI / SQUARE FLANGE JACK RECEPTA

Search across all available documentation for this part.

Radiall USA, Inc.

QLI / SQUARE FLANGE JACK RECEPTA

Technical Specifications

Parameters and characteristics for this part

Specification	R184405007

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	QLI
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Shield Termination	Solder
Voltage Rating	1400 V

Part	Center Contact Plating	Center Contact Material	Contact Termination	Impedance	Body Material	Frequency - Max [Max]	Mounting Type	Body Finish	Dielectric Material	Housing Color	Connector Type	Connector Style	Number of Ports	Voltage Rating	Mounting Feature	Fastening Type	Shield Termination	Ingress Protection
Radiall USA, Inc. R184405007	Silver	Brass	Solder	50 Ohms	Brass	6000 MHz	Panel Mount Through Hole	White Bronze	Polytetrafluoroethylene (PTFE)	Silver	Female Socket Jack	QLI	1	1400 V	Flange	Bayonet Lock	Solder	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.86

General part information

QLI Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole Solder

Technical documentation and resources

No documents available
