C4AQILU4380A12J

Active

KEMET

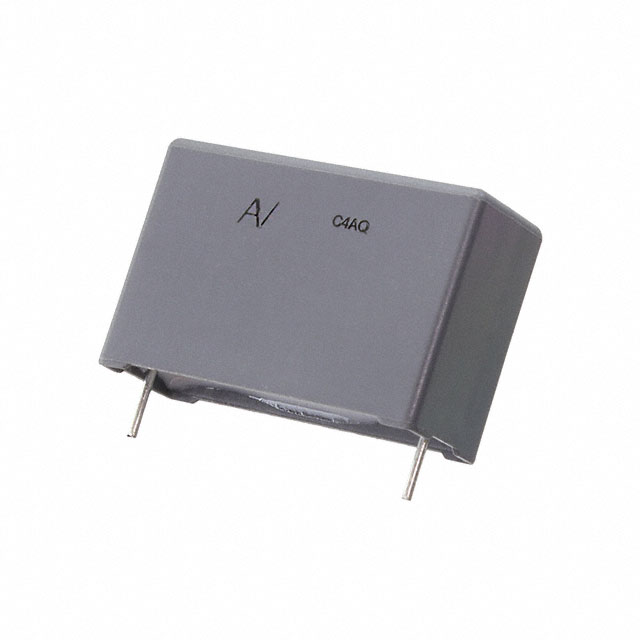

CAP FILM 3.8UF 5% 800VDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC4AQILU4380A12J Spec Datasheet +1

C4AQILU4380A12J

Active

KEMET

CAP FILM 3.8UF 5% 800VDC RADIAL

Deep-Dive with AI

DocumentsC4AQILU4380A12J Spec Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C4AQILU4380A12J

Applications	Automotive, DC Link, DC Filtering
Capacitance	3.8 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	13.2 mOhms
Height - Seated (Max) [Max] [z]	15.2 mm
Height - Seated (Max) [Max] [z]	0.598 in
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	24 mm
Size / Dimension [y]	0.945 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - DC	800 V

C4AQIL Series

Part	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Capacitance	Applications	Termination	Ratings	Tolerance	Voltage Rating - DC	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Features
KEMET C4AQILW5220A38J	Metallized Polypropylene (PP)	105 ░C	-55 °C	37.5 mm	1.476 in	22 µF	Automotive DC Filtering DC Link	PC Pins	AEC-Q200	5 %	800 V	Radial - 4 Leads	1.654 in	1.693 in	42 mm	43 mm	Through Hole	4.3 mOhms	0.992 in	25.2 mm
KEMET C4AQILU4270M11J	Metallized Polypropylene (PP)	105 ░C	-55 °C	27.5 mm	1.083 in	2.7 µF	Automotive DC Filtering DC Link	PC Pins	AEC-Q200	5 %	800 V	Radial	1.26 in	0.827 in	32 mm	21 mm	Through Hole	18 mOhms	0.5 in	12.7 mm	Low ESL
KEMET C4AQILW5220M38J	Metallized Polypropylene (PP)	105 ░C	-55 °C	37.5 mm	1.476 in	22 µF	Automotive DC Filtering DC Link	PC Pins	AEC-Q200	5 %	800 V	Radial - 4 Leads	1.654 in	1.693 in	42 mm	43 mm	Through Hole	4.3 mOhms	0.992 in	25.2 mm	Low ESL
KEMET C4AQILW5160M36J	Metallized Polypropylene (PP)	105 ░C	-55 °C	37.5 mm	1.476 in	16 µF	Automotive DC Filtering DC Link	PC Pins	AEC-Q200	5 %	800 V	Radial - 4 Leads	1.654 in	1.378 "	42 mm	35 mm	Through Hole	5.8 mOhms	0.953 in	24.2 mm	Low ESL
KEMET C4AQILW4800A33J	Metallized Polypropylene (PP)	105 ░C	-55 °C	37.5 mm	1.476 in	8 µF	Automotive DC Filtering DC Link	PC Pins	AEC-Q200	5 %	800 V	Radial - 4 Leads	1.634 "	0.945 in	41.5 mm	24 mm	Through Hole	11.4 mOhms	0.756 in	19.2 mm
KEMET C4AQILU4380A12J	Metallized Polypropylene (PP)	105 ░C	-55 °C	27.5 mm	1.083 in	3.8 µF	Automotive DC Filtering DC Link	PC Pins	AEC-Q200	5 %	800 V	Radial	1.26 in	0.945 in	32 mm	24 mm	Through Hole	13.2 mOhms	0.598 in	15.2 mm
KEMET C4AQILW4800M33J	Metallized Polypropylene (PP)	105 ░C	-55 °C	37.5 mm	1.476 in	8 µF	Automotive DC Filtering DC Link	PC Pins	AEC-Q200	5 %	800 V	Radial - 4 Leads	1.634 "	0.945 in	41.5 mm	24 mm	Through Hole	11.4 mOhms	0.756 in	19.2 mm	Low ESL
KEMET C4AQILU4380M12J	Metallized Polypropylene (PP)	105 ░C	-55 °C	27.5 mm	1.083 in	3.8 µF	Automotive DC Filtering DC Link	PC Pins	AEC-Q200	5 %	800 V	Radial	1.26 in	0.945 in	32 mm	24 mm	Through Hole	13.2 mOhms	0.598 in	15.2 mm	Low ESL
KEMET C4AQILU4750A19J	Metallized Polypropylene (PP)	105 ░C	-55 °C	27.5 mm	1.083 in	7.5 µF	Automotive DC Filtering DC Link	PC Pins	AEC-Q200	5 %	800 V	Radial					Through Hole	7.3 mOhms	0.756 in	19.2 mm
KEMET C4AQILW5150A36J	Metallized Polypropylene (PP)	105 ░C	-55 °C	37.5 mm	1.476 in	15 µF	Automotive DC Filtering DC Link	PC Pins	AEC-Q200	5 %	800 V	Radial - 4 Leads	1.654 in	1.378 "	42 mm	35 mm	Through Hole	6.2 mOhms	0.953 in	24.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.86
		10	$ 2.04
		50	$ 1.67
		168	$ 1.47
		504	$ 1.32
		1008	$ 1.24
		2520	$ 1.15
		5040	$ 1.10

Description

General part information

C4AQIL Series

3.8 µF Film Capacitor 800V Polypropylene (PP), Metallized Radial

Documents

Technical documentation and resources

C4AQILU4380A12J Spec

Datasheet

KEM_F3114_C4AQ.pdf

Datasheet
