MLW3022-12-RF-1A
ObsoleteNKK Switches

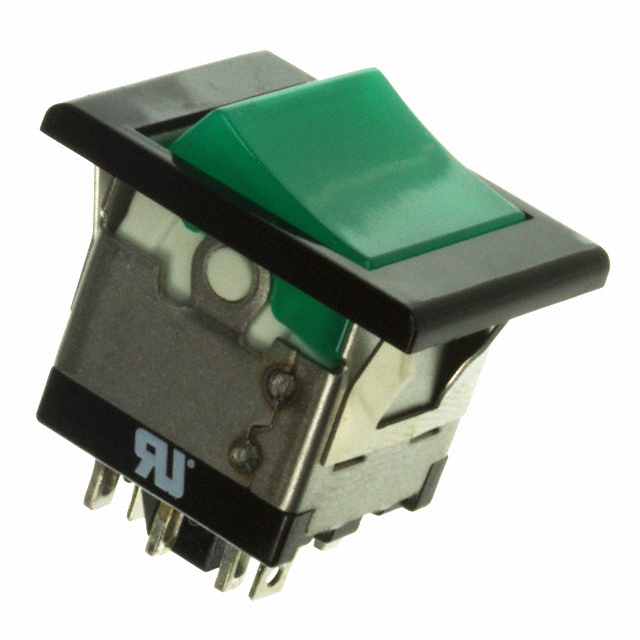

SWITCH ROCKER DPDT 5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MLW3022-12-RF-1A
ObsoleteNKK Switches
SWITCH ROCKER DPDT 5A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MLW3022-12-RF-1A |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) - Illuminated |
| Approval Agency | UL |
| Circuit | DPDT |
| Color - Actuator/Cap | Green |
| Current Rating (Amps) | 3 A, 5 A |
| Electrical Life | 10000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination Type, Color | Green, Incandescent |
| Illumination Voltage (Nominal) | 12 VAC |
| Mechanical Life | 30000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Panel Cutout Dimensions [x] | 18.7 mm |
| Panel Cutout Dimensions [y] | 16.7 mm |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
MLW3022 Series
| Part | Illumination Voltage (Nominal) | Mounting Type | Voltage Rating - AC | Illumination Type, Color | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Panel Cutout Dimensions | Switch Function | Current Rating (Amps) | Mechanical Life | Approval Agency | Features | Circuit | Color - Actuator/Cap | Termination Style | Voltage Rating - DC | Actuator Type | Actuator Marking | Electrical Life | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 6 VAC/DC | Panel Mount Snap-In | 125 V | Incandescent White | -10 °C | 50 °C | 19.2 mm² | On-On | 3 A 5 A | 30000 Steps | UL | Epoxy Sealed Terminals | DPDT | White | Solder Lug | 30 V | Concave (Curved) - Illuminated | No Marking | 10000 Cycles | |||
NKK Switches | 12 VAC | Panel Mount Snap-In | 125 V | Green Incandescent | -10 °C | 50 °C | On-On | 3 A 5 A | 30000 Steps | UL | Epoxy Sealed Terminals | DPDT | Green | Solder Lug | 30 V | Concave (Curved) - Illuminated | No Marking | 10000 Cycles | 18.7 mm | 16.7 mm | ||
NKK Switches | 2.1 VDC | Panel Mount Snap-In | 125 V | Green LED | -10 °C | 50 °C | On-On | 3 A 5 A | 30000 Steps | UL | Epoxy Sealed Terminals | DPDT | Green | Solder Lug | 30 V | Concave (Curved) - Illuminated | No Marking | 10000 Cycles | 18.7 mm | 16.7 mm | ||
NKK Switches | 28 VAC/DC | Panel Mount Snap-In | 125 V | Incandescent White | -10 °C | 50 °C | On-On | 3 A 5 A | 30000 Steps | UL | Epoxy Sealed Terminals | DPDT | White | Solder Lug | 30 V | Concave (Curved) - Illuminated | No Marking | 10000 Cycles | 18.7 mm | 16.7 mm | ||
NKK Switches | Panel Mount Snap-In | 125 V | -10 °C | 50 °C | On-On | 3 A 5 A | 30000 Steps | UL | Epoxy Sealed Terminals | DPDT | White | Solder Lug | 30 V | Concave (Curved) | No Marking | 10000 Cycles | 18.7 mm | 16.7 mm | ||||
NKK Switches | Panel Mount Snap-In | 125 V | -10 °C | 50 °C | On-On | 3 A 5 A | 30000 Steps | UL | Epoxy Sealed Terminals | DPDT | White | Solder Lug | 30 V | Concave (Curved) | No Marking | 10000 Cycles | 19.2 mm˛ | |||||
NKK Switches | ||||||||||||||||||||||
NKK Switches | Panel Mount Snap-In | 125 V | -10 °C | 50 °C | On-On | 3 A 5 A | 30000 Steps | UL | Epoxy Sealed Terminals | DPDT | Red | Solder Lug | 30 V | Concave (Curved) | No Marking | 10000 Cycles | 18.7 mm | 16.7 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MLW3022 Series
Rocker Switch DPDT 5A (AC), 3A (DC) 125 V Panel Mount, Snap-In
