DS15BR400TVS
ActiveNational Semiconductor
LINE TRANSCEIVER, 1 FUNC, 4 DRIV
Deep-Dive with AI
Search across all available documentation for this part.
DS15BR400TVS
ActiveNational Semiconductor
LINE TRANSCEIVER, 1 FUNC, 4 DRIV
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DS15BR400TVS |
|---|---|
| Applications | LVDS |
| Capacitance - Input | 3 pF |
| Current - Supply | 175 mA |
| Data Rate (Max) | 2 Gbps |
| Delay Time | 1 ns |
| Mounting Type | Surface Mount |
| Number of Channels | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVDS |

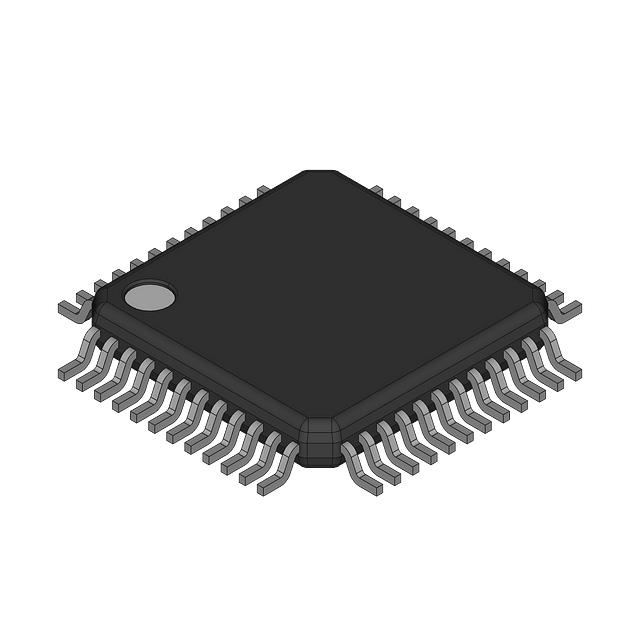

| Package / Case | 48-TQFP |
| Signal Conditioning | Output Pre-Emphasis |
| Supplier Device Package | 48-TQFP (7x7) |
| Type | ReDriver, Buffer |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 44 | $ 6.90 | |
Description
General part information
DS15BR400 Series
Buffer, ReDriver 4 Channel 2Gbps 48-TQFP (7x7)
Documents
Technical documentation and resources
No documents available
