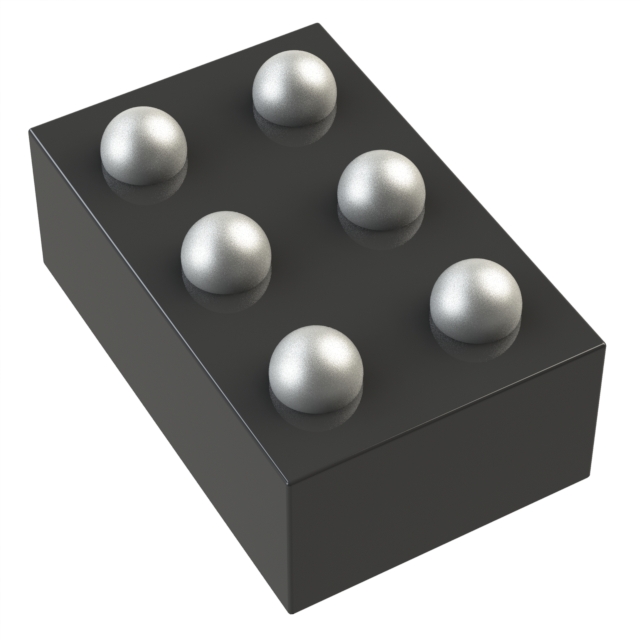

S-85M1AB21-H6T6S

Active

ABLIC Inc.

IC REG BUCK 2.1V 200MA 6WLP

Search across all available documentation for this part.

Active

ABLIC Inc.

IC REG BUCK 2.1V 200MA 6WLP

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Min) [Min]	Function	Frequency - Switching	Mounting Type	Topology	Output Type	Voltage - Input (Max) [Max]	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Current - Output	Voltage - Output (Min/Fixed)
ABLIC Inc. S-85M1AB17-H6T6S	2.2 V	Step-Down	1 MHz	Surface Mount	Buck	1.81 mOhm	5.6 V	Positive	85 °C	-40 °C	1	200 mA
ABLIC Inc. S-85M1AB21-H6T6S	2.2 V	Step-Down	1 MHz	Surface Mount	Buck	1.81 mOhm	5.6 V	Positive	85 °C	-40 °C	1	200 mA	2.1 V
ABLIC Inc. S-85M1AB10-H6T6S	2.2 V	Step-Down	1 MHz	Surface Mount	Buck	1.81 mOhm	5.6 V	Positive	85 °C	-40 °C	1	200 mA	1 V
ABLIC Inc. S-85M1AB30-H6T6S	2.2 V	Step-Down	1 MHz	Surface Mount	Buck	1.81 mOhm	5.6 V	Positive	85 °C	-40 °C	1	200 mA
ABLIC Inc. S-85M1AC07-H6T6S	2.2 V	Step-Down	1 MHz	Surface Mount	Buck	1.81 mOhm	5.6 V	Positive	85 °C	-40 °C	1	200 mA	0.7 V
ABLIC Inc. S-85M1AC37-H6T6S	2.2 V	Step-Down	1 MHz	Surface Mount	Buck	1.81 mOhm	5.6 V	Positive	85 °C	-40 °C	1	200 mA	3.7 V
ABLIC Inc. S-85M1AB36-H6T6S	2.2 V	Step-Down	1 MHz	Surface Mount	Buck	1.81 mOhm	5.6 V	Positive	85 °C	-40 °C	1	200 mA	3.6 V
ABLIC Inc. S-85M1AC09-H6T6S	2.2 V	Step-Down	1 MHz	Surface Mount	Buck	1.81 mOhm	5.6 V	Positive	85 °C	-40 °C	1	200 mA	0.9 V
ABLIC Inc. S-85M1AB28-H6T6S	2.2 V	Step-Down	1 MHz	Surface Mount	Buck	1.81 mOhm	5.6 V	Positive	85 °C	-40 °C	1	200 mA	2.8 V
ABLIC Inc. S-85M1AC19-H6T6S	2.2 V	Step-Down	1 MHz	Surface Mount	Buck	1.81 mOhm	5.6 V	Positive	85 °C	-40 °C	1	200 mA	1.9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	6000	$ 0.92

General part information

Buck Switching Regulator IC Positive Fixed 2.1V 1 Output 200mA 6-UFBGA, WLBGA
