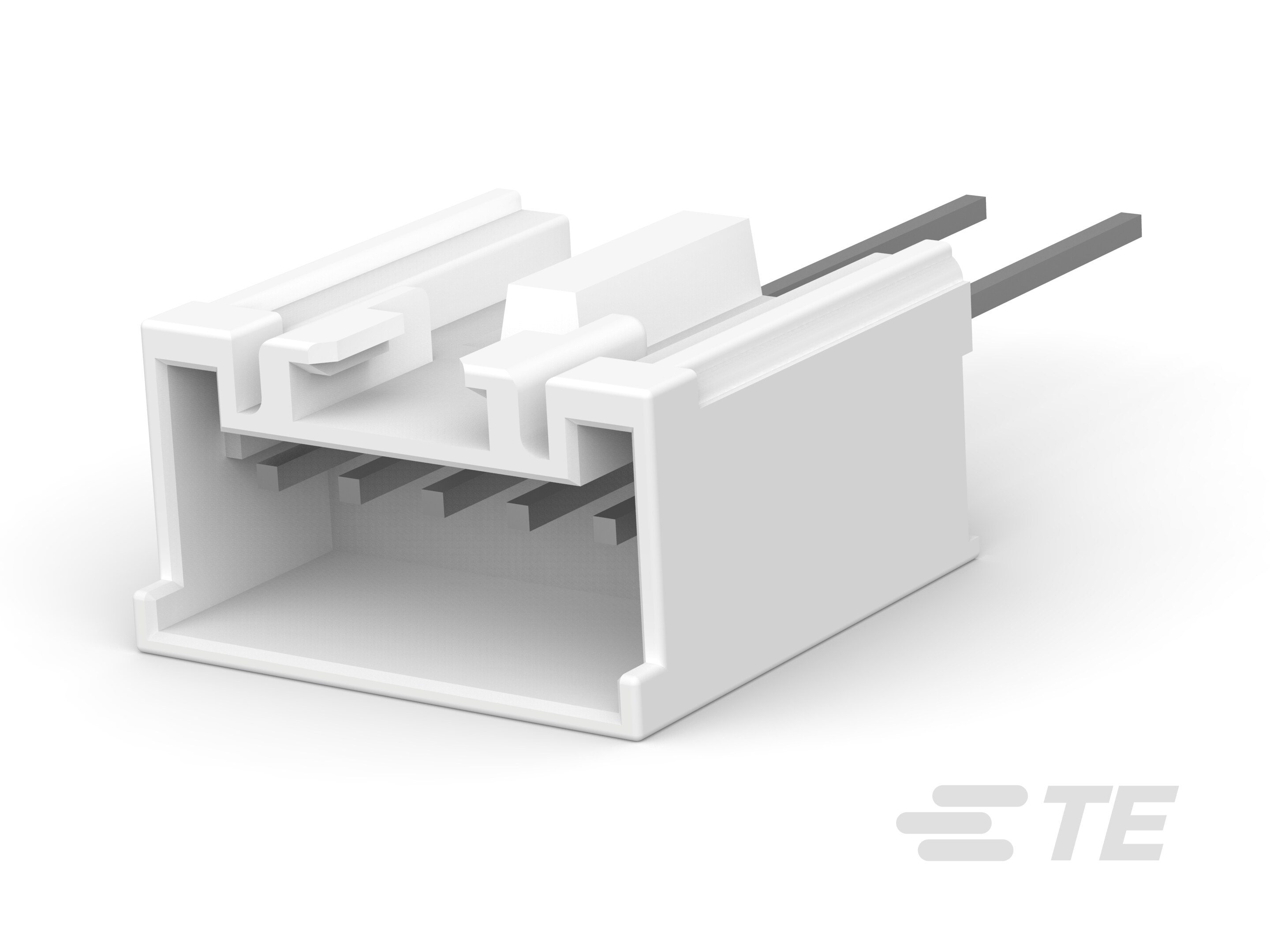

Specification	316224-1

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Post	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Color	Natural
Insulation Material	Nylon 6/6, Polyamide (PA66), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	5
Number of Positions Loaded	2
Number of Rows	1
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

316224 Series

Part	Contact Finish - Post	Material Flammability Rating	Fastening Type	Shrouding	Number of Positions Loaded	Number of Rows	Connector Type	Insulation Material	Contact Finish - Mating	Contact Shape	Contact Length - Post	Pitch - Mating	Insulation Color	Mounting Type	Contact Type	Contact Material	Style	Number of Positions	Termination
TE Connectivity AMP Connectors 316224-1	Tin	UL94 V-0	Latch Holder	Shrouded - 4 Wall	2	1	Header	Glass Filled Nylon 6/6 Polyamide (PA66)	Tin	Square	0.11 in	0.098 in	Natural	Through Hole	Male Pin	Copper Alloy	Board Cable/Wire	5	Solder
