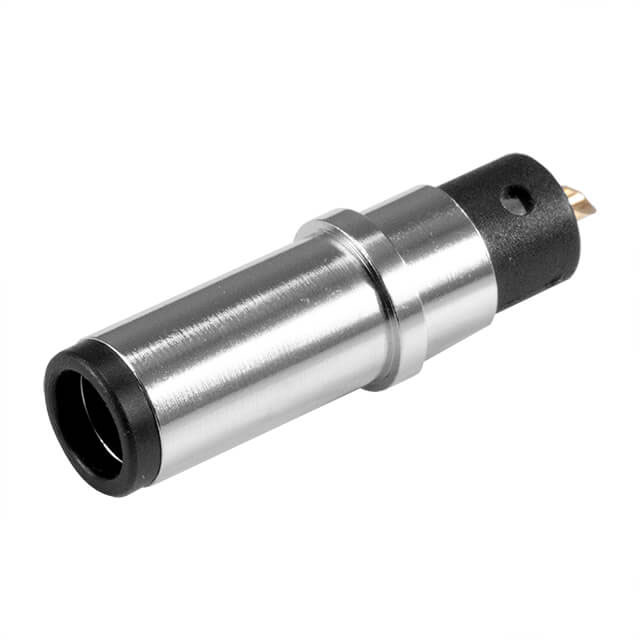

PP-165274-OM
ActiveCUI Devices
POWER PLUG, 1.6 X 5.25 X 7.4 MM,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PP-165274-OM
ActiveCUI Devices
POWER PLUG, 1.6 X 5.25 X 7.4 MM,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PP-165274-OM |
|---|---|
| Actual Diameter [diameter] | 0.291 in, 0.063 " |
| Actual Diameter [diameter] | 1.6 mm, 7.4 mm |
| Body Color | Silver |
| Body Material | Brass |
| Connector Type | Plug |
| Contact Material | Brass |
| Contact Material - Plating [custom] | Gold, Nickel |
| Gender | Male |
| Industry Recognized Mating Diameter [diameter] | 7.4 mm, 1.6 mm, 5.25 mm |
| Industry Recognized Mating Diameter [diameter] | 0.291 in, 0.207 in, 0.063 in |
| Insulation Color | Black |
| Internal Switch(s) | False |
| Material Flammability Rating | UL94 V-0 |
| Mating Length/Depth | 14.6 mm |
| Mating Length/Depth | 0.575 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.46 | |
| 10 | $ 1.27 | |||
| 25 | $ 1.22 | |||
| 40 | $ 1.19 | |||
| 108 | $ 1.14 | |||
| 324 | $ 1.03 | |||
| 540 | $ 0.95 | |||
Description
General part information
PP-165274 Series
Power Barrel Connector Plug 1.60mm ID (0.063"), 5.25mm ID (0.207"), 7.40mm OD (0.291") Free Hanging (In-Line)
