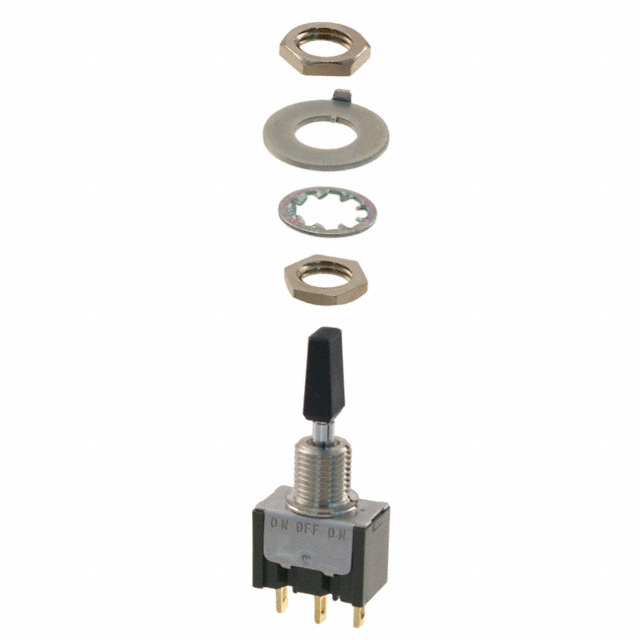

M2013K1A1A01-A

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	M2013K1A1A01-A

Actuator Length [x]	9.4 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Type	Snap On Paddle
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Black Cap
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Off-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Bushing Thread	Termination Style	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Voltage Rating - AC	Electrical Life	Switch Function	Actuator Type	Illumination	Circuit	Voltage Rating - DC	Current Rating (Amps)	Features
NKK Switches M2013K1A1A01-A	1/4-40	Solder Lug	6.5 mm	9.4 mm	-30 ░C	85 °C	Nylon Polyamide (PA)	125 V	25000 Steps	On-Off-On	Snap On Paddle	Non-Illuminated	SPDT	30 V	3 A 6 A	Black Cap
NKK Switches M2013K1A1A01-G	1/4-40	Solder Lug	6.5 mm	9.4 mm	-30 ░C	85 °C	Brass Chrome Plated	125 V	25000 Steps	On-Off-On	Snap On Paddle	Non-Illuminated	SPDT	30 V	3 A 6 A	Blue Cap

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
