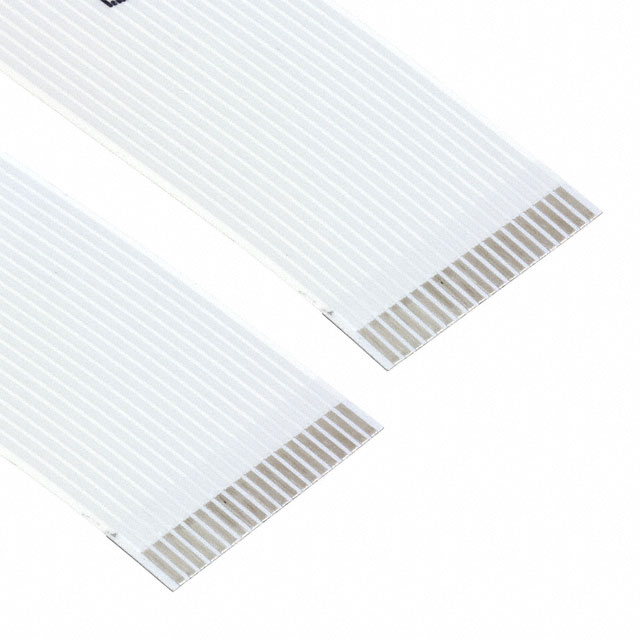

125R20-102BO

Active

Parlex USA LLC

CABLE FFC 20POS 1.25MM 4"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC 20POS 1.25MM 4"

Technical Specifications

Parameters and characteristics for this part

Specification	125R20-102BO

Cable Type	FPC, FFC
Length	4 in
Length	101.6 mm
Length - Exposed Ends [x]	0.14 in
Length - Exposed Ends [x]	3.56 mm
Number of Conductors	20
Pitch [x]	0.049 in
Pitch [x]	1.25 mm
Termination Style	Top on One Side, Bottom on Other, Backers on Both Sides

CABLE FFC 20POS 1.25MM 4"

Part	Pitch [x]	Pitch [x]	Cable Type	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Number of Conductors	Termination Style	Length	Length
Parlex USA LLC 125R20-102BO	0.049 in	1.25 mm	FFC, FPC	0.14 in	3.56 mm	20	Top on One Side, Bottom on Other, Backers on Both Sides	4 in	101.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position FFC, FPC Cable 0.049" (1.25mm) 4.000" (101.60mm)
