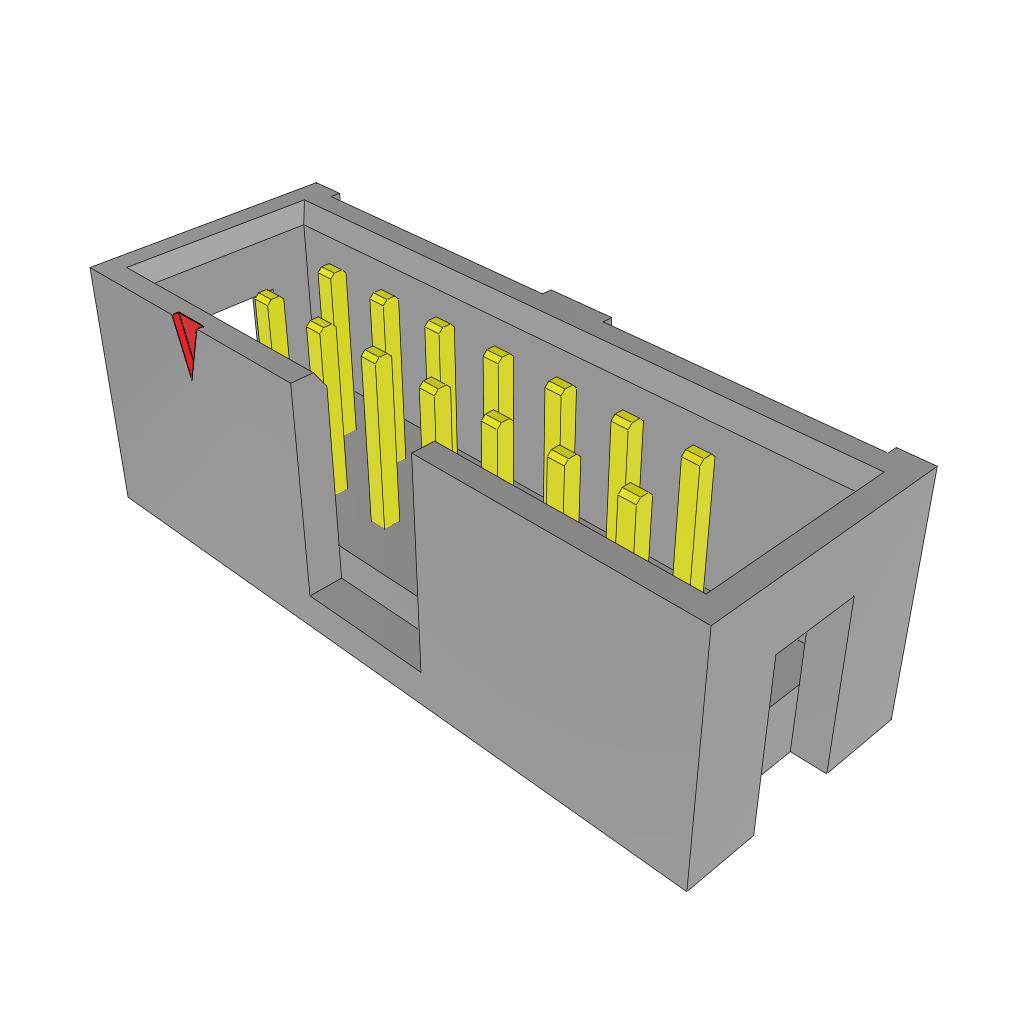

HTST-107-04-F-D-RA

Active

Samtec Inc.

CONN SHROUDED HEADER (4 SIDES) HDR 14 POS 2.54MM SOLDER RA SIDE ENTRY THRU-HOLE TUBE

Deep-Dive with AI

Search across all available documentation for this part.

Documents.100" High-Temp Shrouded Terminal Strip, Cable Mate Datasheet +1

HTST-107-04-F-D-RA

Active

Samtec Inc.

CONN SHROUDED HEADER (4 SIDES) HDR 14 POS 2.54MM SOLDER RA SIDE ENTRY THRU-HOLE TUBE

Deep-Dive with AI

Documents.100" High-Temp Shrouded Terminal Strip, Cable Mate Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HTST-107-04-F-D-RA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Natural
Insulation Height	0.365 in
Insulation Height	9.27 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

HTST-107 Series

Part	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Termination	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Style	Material Flammability Rating	Shrouding	Number of Positions	Number of Rows	Contact Finish - Post	Connector Type	Fastening Type	Insulation Material	Contact Shape	Features	Contact Type	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Height [custom]	Insulation Height [custom]	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. HTST-107-05-T-D-RA	Natural	2.54 mm	0.1 in	Through Hole Right Angle	Solder	0.23 in	5.84 mm	0.1 in	2.54 mm	Phosphor Bronze	105 ░C	-55 °C	All	6.35 mm	0.25 in	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	14	2	Tin	Header	Push-Pull	Liquid Crystal Polymer (LCP)	Square	Keying Slot	Male Pin	0.365 in	9.27 mm
Samtec Inc. HTST-107-01-LM-DV-P	Natural	2.54 mm	0.1 in	Surface Mount	Solder			0.1 in	2.54 mm	Phosphor Bronze	125 °C	-55 °C	All	6.35 mm	0.25 in	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	14	2	Tin	Header	Push-Pull	Liquid Crystal Polymer (LCP)	Square	Keying Slot Pick and Place	Male Pin			10 çin	0.25 çm	Gold	0.35 in	8.89 mm
Samtec Inc. HTST-107-02-T-D-06	Natural	2.54 mm	0.1 in	Through Hole	Solder			0.1 in	2.54 mm	Phosphor Bronze	105 ░C	-55 °C		6.35 mm	0.25 in	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	14	2	Tin	Header	Push-Pull	Liquid Crystal Polymer (LCP)	Square	Keying Slot	Male Pin						0.35 in	8.89 mm	13.46 mm	0.53 in	13	0.165 in	4.19 mm
Samtec Inc. HTST-107-04-F-D-RA-06	Natural	2.54 mm	0.1 in	Through Hole Right Angle	Solder	0.13 in	3.3 mm	0.1 in	2.54 mm	Phosphor Bronze	125 °C	-55 °C		6.35 mm	0.25 in	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	14	2	Tin	Header	Push-Pull	Liquid Crystal Polymer (LCP)	Square	Keying Slot	Male Pin	0.365 in	9.27 mm	3 µin	0.076 µm	Gold					13
Samtec Inc. HTST-107-01-F-DV	Natural	2.54 mm	0.1 in	Surface Mount	Solder			0.1 in	2.54 mm	Phosphor Bronze	125 °C	-55 °C	All	6.35 mm	0.25 in	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	14	2	Tin	Header	Push-Pull	Liquid Crystal Polymer (LCP)	Square	Keying Slot	Male Pin			3 µin	0.076 µm	Gold	0.35 in	8.89 mm
Samtec Inc. HTST-107-01-G-D-01	Natural	2.54 mm	0.1 in	Through Hole	Solder	0.115 in	2.92 mm	0.1 in	2.54 mm	Phosphor Bronze	125 °C	-55 °C		6.35 mm	0.25 in	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	14	2	Gold	Header	Push-Pull	Liquid Crystal Polymer (LCP)	Square	Keying Slot	Male Pin			10 çin	0.25 çm	Gold	0.35 in	8.89 mm	12.19 mm	0.48 in	13			3 µin	0.076 µm
Samtec Inc. HTST-107-01-S-DV-P-TR	Natural	2.54 mm	0.1 in	Surface Mount	Solder			0.1 in	2.54 mm	Phosphor Bronze	125 °C	-55 °C	All	6.35 mm	0.25 in	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	14	2	Tin	Header	Push-Pull	Liquid Crystal Polymer (LCP)	Square	Keying Slot Pick and Place	Male Pin			30 Áin	0.76 Ám	Gold	0.35 in	8.89 mm
Samtec Inc. HTST-107-01-S-D-06	Natural	2.54 mm	0.1 in	Through Hole	Solder	0.115 in	2.92 mm	0.1 in	2.54 mm	Phosphor Bronze	125 °C	-55 °C		6.35 mm	0.25 in	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	14	2	Tin	Header	Push-Pull	Liquid Crystal Polymer (LCP)	Square	Keying Slot	Male Pin			30 Áin	0.76 Ám	Gold	0.35 in	8.89 mm	12.19 mm	0.48 in	13
Samtec Inc. HTST-107-04-F-D-RA	Natural	2.54 mm	0.1 in	Through Hole Right Angle	Solder	0.13 in	3.3 mm	0.1 in	2.54 mm	Phosphor Bronze	125 °C	-55 °C	All	6.35 mm	0.25 in	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	14	2	Tin	Header	Push-Pull	Liquid Crystal Polymer (LCP)	Square	Keying Slot	Male Pin	0.365 in	9.27 mm	3 µin	0.076 µm	Gold
Samtec Inc. HTST-107-01-SM-DV-P	Natural	2.54 mm	0.1 in	Surface Mount	Solder			0.1 in	2.54 mm	Phosphor Bronze	125 °C	-55 °C	All	6.35 mm	0.25 in	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	14	2	Tin	Header	Push-Pull	Liquid Crystal Polymer (LCP)	Square	Keying Slot Pick and Place	Male Pin			30 Áin	0.76 Ám	Gold	0.35 in	8.89 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	22	$ 3.46
