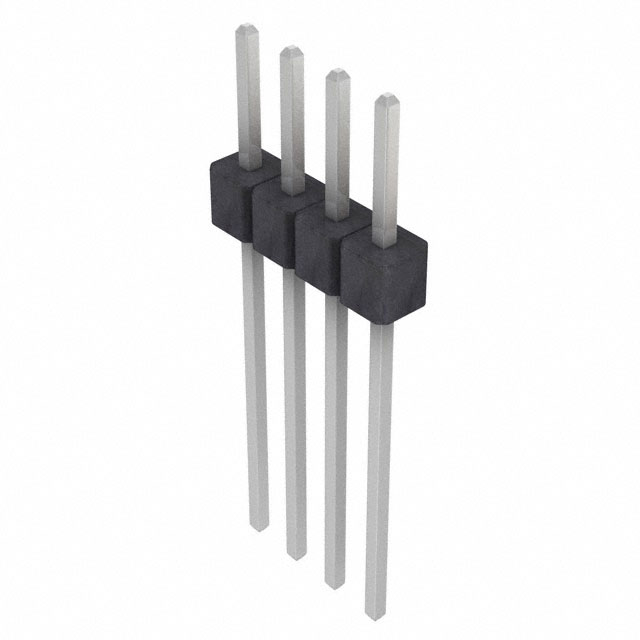

PTC04SAFN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PTC04SAFN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTC04SAFN

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.62 in
Contact Length - Post	15.75 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyester, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	24.13 mm
Overall Contact Length	0.95 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PTC04 Series

Part	Insulation Color	Style	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Termination	Connector Type	Contact Material	Shrouding	Contact Length - Mating [x]	Contact Length - Mating	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Insulation Material	Overall Contact Length	Overall Contact Length	Fastening Type	Mounting Type	Number of Positions	Contact Type	Number of Rows	Material Flammability Rating	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]	Overall Contact Length
Sullins Connector Solutions PTC04SAAN	Black	Board to Board Cable	Square	0.12 in	3.05 mm	2.54 çm	100 çin	All	Solder	Header	Copper Alloy	Unshrouded	0.23 in	5.84 mm	0.1 in	2.54 mm	2.54 µm	100 µin	Tin	0.1 in	2.54 mm	Polyester Thermoplastic	0.45 "	11.43 mm	Push-Pull	Through Hole	4	Male Pin	1	UL94 V-0	3 A
Sullins Connector Solutions PTC04DBEN	Black	Board to Board Cable	Square			2.54 çm	100 çin	All	Solder	Header	Copper Alloy	Unshrouded	0.23 in	5.84 mm	0.24 in	6.1 mm	2.54 µm	100 µin	Tin	0.1 in	2.54 mm	Polyester Thermoplastic			Push-Pull	Through Hole Right Angle	8	Male Pin	2	UL94 V-0	3 A	2.54 mm	0.1 in	13.21 mm	0.52 "
Sullins Connector Solutions PTC04SAHN	Black	Board to Board Cable	Square	0.82 in	20.83 mm	2.54 çm	100 çin	All	Solder	Header	Copper Alloy	Unshrouded	0.23 in	5.84 mm	0.1 in	2.54 mm	2.54 µm	100 µin	Tin	0.1 in	2.54 mm	Polyester Thermoplastic	1.15 in	29.21 mm	Push-Pull	Through Hole	4	Male Pin	1	UL94 V-0	3 A
Sullins Connector Solutions PTC04DAHN	Black	Board to Board Cable	Square	0.82 in	20.83 mm	2.54 çm	100 çin	All	Solder	Header	Copper Alloy	Unshrouded	0.23 in	5.84 mm	0.1 in	2.54 mm	2.54 µm	100 µin	Tin	0.1 in	2.54 mm	Polyester Thermoplastic	1.15 in	29.21 mm	Push-Pull	Through Hole	8	Male Pin	2	UL94 V-0	3 A	2.54 mm	0.1 in
Sullins Connector Solutions PTC04SGBN	Black	Board to Board Cable	Square			2.54 çm	100 çin	All	Solder	Header	Copper Alloy	Unshrouded	0.318 "		0.14 in	3.56 mm	2.54 µm	100 µin	Tin	0.1 in	2.54 mm	Polyester Thermoplastic			Push-Pull	Through Hole Right Angle	4	Male Pin	1	UL94 V-0	3 A			5.58 mm	0.22 in	8.08 mm
Sullins Connector Solutions PTC04SAFN	Black	Board to Board Cable	Square			2.54 çm	100 çin	All	Solder	Header	Copper Alloy	Unshrouded	0.23 in	5.84 mm	0.1 in	2.54 mm	2.54 µm	100 µin	Tin	0.1 in	2.54 mm	Polyester Thermoplastic	0.95 in	24.13 mm	Push-Pull	Through Hole	4	Male Pin	1	UL94 V-0	3 A			15.75 mm	0.62 in
Sullins Connector Solutions PTC04DBAN	Black	Board to Board Cable	Square	0.12 in	3.05 mm	2.54 çm	100 çin	All	Solder	Header	Copper Alloy	Unshrouded	0.23 in	5.84 mm	0.24 in	6.1 mm	2.54 µm	100 µin	Tin	0.1 in	2.54 mm	Polyester Thermoplastic			Push-Pull	Through Hole Right Angle	8	Male Pin	2	UL94 V-0	3 A	2.54 mm	0.1 in
Sullins Connector Solutions PTC04DAEN	Black	Board to Board Cable	Square			2.54 çm	100 çin	All	Solder	Header	Copper Alloy	Unshrouded	0.23 in	5.84 mm	0.1 in	2.54 mm	2.54 µm	100 µin	Tin	0.1 in	2.54 mm	Polyester Thermoplastic	0.85 in	21.59 mm	Push-Pull	Through Hole	8	Male Pin	2	UL94 V-0	3 A	2.54 mm	0.1 in	13.21 mm	0.52 "
Sullins Connector Solutions PTC04DACN	Black	Board to Board Cable	Square	0.32 in	8.13 mm	2.54 çm	100 çin	All	Solder	Header	Copper Alloy	Unshrouded	0.23 in	5.84 mm	0.1 in	2.54 mm	2.54 µm	100 µin	Tin	0.1 in	2.54 mm	Polyester Thermoplastic		0.65 in	Push-Pull	Through Hole	8	Male Pin	2	UL94 V-0	3 A	2.54 mm	0.1 in				16.51 mm
Sullins Connector Solutions PTC04SFBN	Black	Board to Board Cable	Square			2.54 çm	100 çin	All	Solder	Header	Copper Alloy	Unshrouded	0.318 "		0.1 in	2.54 mm	2.54 µm	100 µin	Tin	0.1 in	2.54 mm	Polyester Thermoplastic	0.638 in	16.21 mm	Push-Pull	Through Hole	4	Male Pin	1	UL94 V-0	3 A			5.58 mm	0.22 in	8.08 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PTC04 Series

Connector Header Through Hole 4 position 0.100" (2.54mm)
