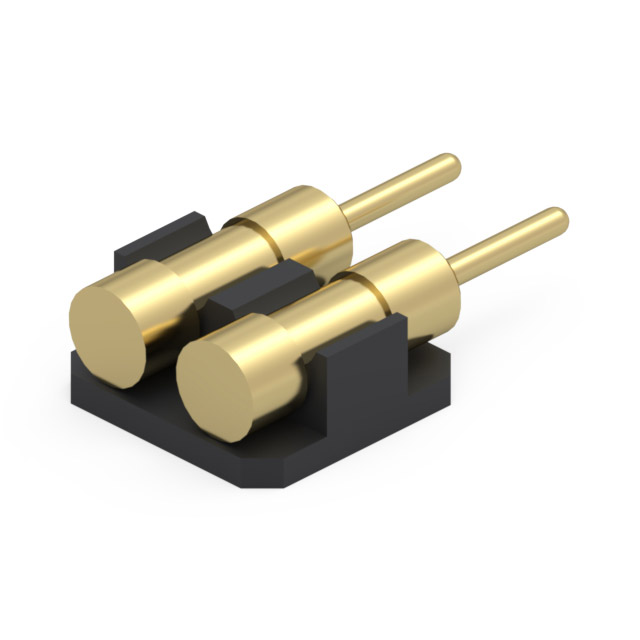

328-10-102-40-020001

Active

Mill-Max Manufacturing Corp.

CONN HEADER SMD R/A 2POS 2.54MM

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN HEADER SMD R/A 2POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	328-10-102-40-020001

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Material	Brass Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.1 mm
Insulation Height	0.083 "
Insulation Material	Polyamide (PA46), Nylon 4/6
Mounting Type	Surface Mount, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	8.38 mm
Overall Contact Length	0.33 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

Part	Overall Contact Length	Overall Contact Length	Fastening Type	Contact Length - Mating	Contact Length - Mating	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Shape	Number of Positions	Termination	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Insulation Material	Insulation Color	Contact Finish - Mating	Number of Positions Loaded	Contact Material	Connector Type	Material Flammability Rating
Mill-Max Manufacturing Corp. 328-10-102-40-020001	8.38 mm	0.33 in	Push-Pull	0.125 in	3.18 mm	Surface Mount Right Angle	0.1 in	2.54 mm	Circular	2	Solder	Male Pin	10 çin	0.25 çm	2.1 mm	0.083 "	1	10 çin	0.25 çm	Gold	Polyamide (PA46) Nylon 4/6	Black	Gold	All	Brass Alloy	Header
Mill-Max Manufacturing Corp. 328-10-105-40-020000			Push-Pull			Surface Mount Right Angle	0.1 in	2.54 mm	Circular		Solder	Male Pin	10 çin	0.25 çm	2.1 mm	0.083 "	1	10 çin	0.25 çm	Gold	Glass Filled Nylon 4/6 Polyamide (PA46)	Black	Gold	All	Brass Alloy	Header	UL94 V-0
Mill-Max Manufacturing Corp. 328-10-105-40-020001	8.38 mm	0.33 in	Push-Pull	0.125 in	3.18 mm	Surface Mount Right Angle	0.1 in	2.54 mm	Circular		Solder	Male Pin	10 çin	0.25 çm	2.1 mm	0.083 "	1	10 çin	0.25 çm	Gold	Polyamide (PA46) Nylon 4/6	Black	Gold	All	Brass Alloy	Header

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 2 position 0.100" (2.54mm)
