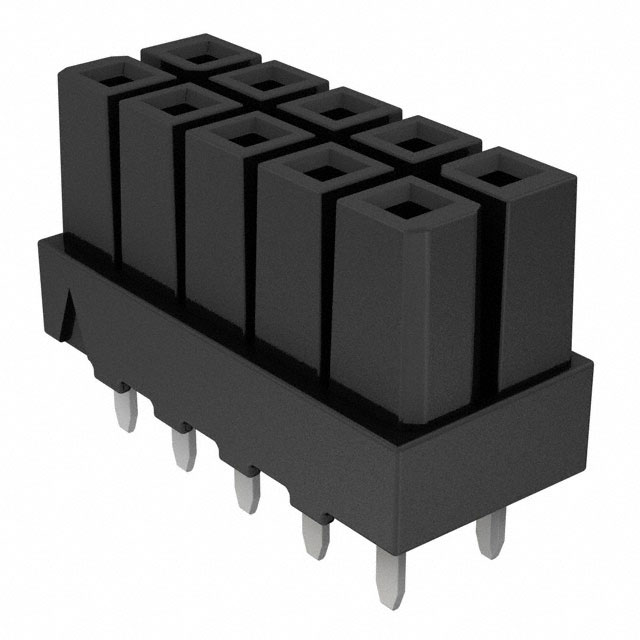

IPBS-105-01-T-D

Active

Samtec Inc.

CONN HDR 10POS 0.165 TIN PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 10POS 0.165 TIN PCB

Technical Specifications

Parameters and characteristics for this part

Part	Contact Material	Number of Positions	Connector Type	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Rows	Number of Positions Loaded	Contact Shape	Features	Mounting Type	Pitch - Mating	Pitch - Mating	Termination	Insulation Material	Insulation Height	Insulation Height	Voltage Rating	Contact Finish - Post	Insulation Color	Fastening Type	Row Spacing - Mating	Row Spacing - Mating
Samtec Inc. IPBS-105-01-T-D-GP	Phosphor Bronze	10	Header	3.94 mm	0.155 "	105 ░C	-55 °C	Female Socket	2	All	Square	Guide Pin	Through Hole	4.2 mm	0.165 in	Solder	Liquid Crystal Polymer (LCP)	12.2 mm	0.48 in	400 VAC 565 VDC	Tin	Black	Push-Pull	4.2 mm	0.165 in
Samtec Inc. IPBS-105-01-T-D	Phosphor Bronze	10	Header	3.94 mm	0.155 "	105 ░C	-55 °C	Female Socket	2	All	Square		Through Hole	4.2 mm	0.165 in	Solder	Liquid Crystal Polymer (LCP)	12.2 mm	0.48 in	400 VAC 565 VDC	Tin	Black	Push-Pull	4.2 mm	0.165 in
Samtec Inc. IPBS-105-02-T-D-GP	Phosphor Bronze	10	Header			105 ░C	-55 °C	Female Socket	2	All	Square	Guide Pin	Surface Mount	4.2 mm	0.165 in	Solder	Liquid Crystal Polymer (LCP)	12.2 mm	0.48 in	400 VAC 565 VDC	Tin	Black	Push-Pull	4.2 mm	0.165 in
Samtec Inc. IPBS-105-02-T-D	Phosphor Bronze	10	Header			105 ░C	-55 °C	Female Socket	2	All	Square		Surface Mount	4.2 mm	0.165 in	Solder	Liquid Crystal Polymer (LCP)	12.2 mm	0.48 in	400 VAC 565 VDC	Tin	Black	Push-Pull	4.2 mm	0.165 in
