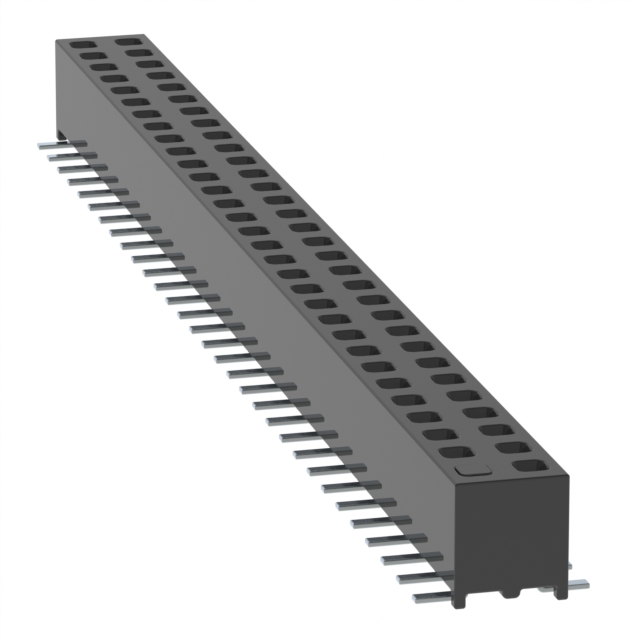

MMS-131-02-F-DV-01-K-TR

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS CLASSIC SOCKET STRIPS, 2.00 MM (.0787") PITCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MMS-131-02-F-DV-01-K-TR

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS CLASSIC SOCKET STRIPS, 2.00 MM (.0787") PITCH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MMS-131-02-F-DV-01-K-TR

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.9 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.177 in
Insulation Height	4.5 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	62
Number of Positions Loaded [custom]	61
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

MMS-107 Series

Headers & Wire Housings Classic Socket Strips, 2.00 mm (.0787") Pitch

...

Part	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Style	Number of Rows	Current Rating (Amps)	Number of Positions	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Contact Shape	Features	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Material	Insulation Material	Contact Finish - Mating	Contact Type	Contact Finish - Post	Termination	Number of Positions Loaded	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Number of Positions Loaded [custom]	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. MMS-107-02-L-DV-01-K	Black	-55 °C	125 °C	Receptacle	Board to Board Cable	2	3.9 A	14	Push-Pull	0.079 in	2 mm	0.177 in	4.5 mm	Square	Pick and Place	0.079 in	2 mm	10 çin	0.25 çm	Surface Mount	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Gold	Female Socket	Tin	Solder	13
Samtec Inc. MMS-103-02-F-DV-K-TR	Black	-55 °C	125 °C	Receptacle	Board to Board Cable	2	3.9 A	6	Push-Pull	0.079 in	2 mm	0.177 in	4.5 mm	Square	Pick and Place	0.079 in	2 mm	3 µin	0.076 µm	Surface Mount	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Gold	Female Socket	Tin	Solder		All
Samtec Inc. MMS-104-02-L-SV	Black	-55 °C	125 °C	Receptacle	Board to Board Cable	1	3.9 A	4	Push-Pull			0.177 in	4.5 mm	Square		0.079 in	2 mm	10 çin	0.25 çm	Surface Mount	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Gold	Female Socket	Tin	Solder		All
Samtec Inc. MMS-110-02-L-DV-A-TR	Black	-55 °C	125 °C	Receptacle	Board to Board Cable	2	3.9 A	20	Push-Pull	0.079 in	2 mm	0.177 in	4.5 mm	Square	Board Guide	0.079 in	2 mm	10 çin	0.25 çm	Surface Mount	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Gold	Female Socket	Tin	Solder		All
Samtec Inc. MMS-102-02-F-DV-TR	Black	-55 °C	125 °C	Receptacle	Board to Board Cable	2	3.9 A	4	Push-Pull	0.079 in	2 mm	0.177 in	4.5 mm	Square		0.079 in	2 mm	3 µin	0.076 µm	Surface Mount	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Gold	Female Socket	Tin	Solder		All
Samtec Inc. MMS-140-02-L-SH-LC	Black	-55 °C	125 °C	Receptacle	Board to Board Cable	1	3.9 A	40	Push-Pull			0.085 "	2.15 mm	Square		0.079 in	2 mm	10 çin	0.25 çm	Surface Mount Right Angle	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Gold	Female Socket	Tin	Solder		All
Samtec Inc. MMS-120-01-S-DV	Black	-55 °C	125 °C	Receptacle	Board to Board Cable	2	3.9 A	40	Push-Pull	0.079 in	2 mm	0.175 in	4.45 mm	Square		0.079 in	2 mm	30 Áin	0.76 Ám	Through Hole	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Gold	Female Socket	Tin	Solder		All	2.92 mm	0.115 in
Samtec Inc. MMS-105-02-F-DV	Black	-55 °C	125 °C	Receptacle	Board to Board Cable	2	3.9 A	10	Push-Pull	0.079 in	2 mm	0.177 in	4.5 mm	Square		0.079 in	2 mm	3 µin	0.076 µm	Surface Mount	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Gold	Female Socket	Tin	Solder		All
Samtec Inc. MMS-131-02-F-DV-01-K-TR	Black	-55 °C	125 °C	Receptacle	Board to Board Cable	2	3.9 A	62	Push-Pull	0.079 in	2 mm	0.177 in	4.5 mm	Square	Pick and Place	0.079 in	2 mm	3 µin	0.076 µm	Surface Mount	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Gold	Female Socket	Tin	Solder					61
Samtec Inc. MMS-134-01-L-SH	Black	-55 °C	125 °C	Receptacle	Board to Board Cable	1	3.9 A	34	Push-Pull			0.079 in	2 mm	Square		0.079 in	2 mm	10 çin	0.25 çm	Through Hole Right Angle	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Gold	Female Socket	Tin	Solder		All				0.12 in	3.05 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	400	$ 6.60
Sager	N/A	1	$ 8.48
		10	$ 7.93
		25	$ 7.32
		50	$ 7.06
		100	$ 6.47
		500	$ 5.74
		1000	$ 4.66
		2000	$ 3.85

Description

General part information

MMS-107 Series

Headers & Wire Housings Classic Socket Strips, 2.00 mm (.0787") Pitch
