299-93-622-10-002000

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 22POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

299-93-622-10-002000

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 22POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	299-93-622-10-002000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Features	Closed Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Number of Positions or Pins (Grid)	22
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.2 mm
Termination Post Length	0.126 in
Type	DIP
Type	0.6 in
Type	15.24 mm

299-93 Series

Part	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Material - Mating	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Features	Contact Finish - Post	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Post	Pitch - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Type	Type	Type	Contact Material - Post	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 299-93-306-10-001000	3.2 mm	0.126 in	2	6	3	Beryllium Copper	Gold	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Closed Frame	Tin-Lead	Solder	30 Áin	0.76 Ám	2.54 mm	0.1 in	200 µin	5.08 µm	0.3 "	7.62 mm	DIP	Brass Alloy
Mill-Max Manufacturing Corp. 299-93-640-10-002000	3.2 mm	0.126 in	2		20	Beryllium Copper	Gold	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Closed Frame	Tin-Lead	Solder	30 Áin	0.76 Ám	2.54 mm	0.1 in	200 µin	5.08 µm	0.6 in	15.24 mm	DIP	Brass Alloy	40
Mill-Max Manufacturing Corp. 299-93-636-10-002000	3.2 mm	0.126 in				Beryllium Copper	Gold	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Closed Frame	Tin-Lead	Solder	30 Áin	0.76 Ám	2.54 mm	0.1 in	200 µin	5.08 µm	0.6 in	15.24 mm	DIP	Brass Alloy	36
Mill-Max Manufacturing Corp. 299-93-310-11-001000	3.2 mm	0.126 in				Beryllium Copper	Gold	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Closed Frame	Tin-Lead	Solder	30 Áin	0.76 Ám	2.54 mm	0.1 in	200 µin	5.08 µm	0.3 "	7.62 mm	DIP	Brass Alloy		2 x 5	10
Mill-Max Manufacturing Corp. 299-93-308-11-001000	3.2 mm	0.126 in				Beryllium Copper	Gold	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Closed Frame	Tin-Lead	Solder	30 Áin	0.76 Ám	2.54 mm	0.1 in	200 µin	5.08 µm	0.3 "	7.62 mm	DIP	Brass Alloy	8
Mill-Max Manufacturing Corp. 299-93-622-10-002000	3.2 mm	0.126 in				Beryllium Copper	Gold	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Closed Frame	Tin-Lead	Solder	30 Áin	0.76 Ám	2.54 mm	0.1 in	200 µin	5.08 µm	0.6 in	15.24 mm	DIP	Brass Alloy	22
Mill-Max Manufacturing Corp. 299-93-610-10-002000	3.2 mm	0.126 in				Beryllium Copper	Gold	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Closed Frame	Tin-Lead	Solder	30 Áin	0.76 Ám	2.54 mm	0.1 in	200 µin	5.08 µm	0.6 in	15.24 mm	DIP	Brass Alloy		2 x 5	10
Mill-Max Manufacturing Corp. 299-93-630-10-002000	3.2 mm	0.126 in	2		15	Beryllium Copper	Gold	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Closed Frame	Tin-Lead	Solder	30 Áin	0.76 Ám	2.54 mm	0.1 in	200 µin	5.08 µm	0.6 in	15.24 mm	DIP	Brass Alloy	30
Mill-Max Manufacturing Corp. 299-93-324-11-001000	3.2 mm	0.126 in				Beryllium Copper	Gold	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Closed Frame	Tin-Lead	Solder	30 Áin	0.76 Ám	2.54 mm	0.1 in	200 µin	5.08 µm	0.3 "	7.62 mm	DIP	Brass Alloy	24
Mill-Max Manufacturing Corp. 299-93-318-10-001000	3.2 mm	0.126 in				Beryllium Copper	Gold	0.1 in	2.54 mm	3 A	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Closed Frame	Tin-Lead	Solder	30 Áin	0.76 Ám	2.54 mm	0.1 in	200 µin	5.08 µm	0.3 "	7.62 mm	DIP	Brass Alloy	18

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 25.28
		18	$ 22.13
		36	$ 21.18
		54	$ 20.49
		108	$ 19.81

Description

General part information

299-93 Series

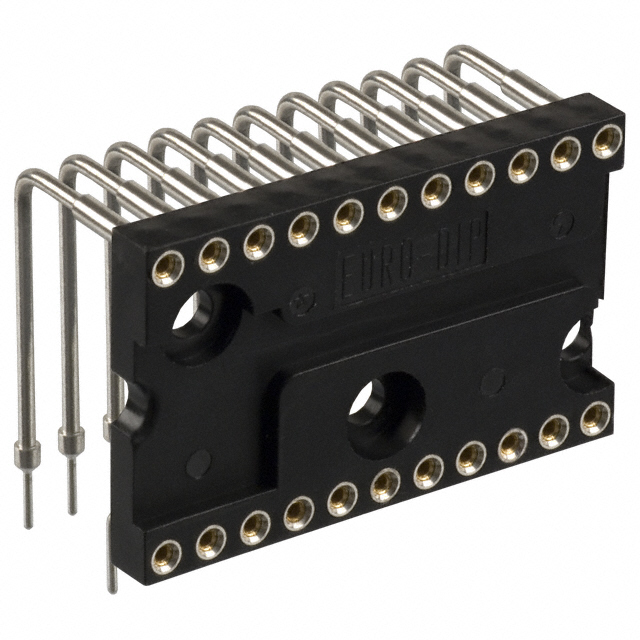

22 (2 x 11) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole, Right Angle, Horizontal
