PHG.0T.511.CLLC35

Active

LEMO

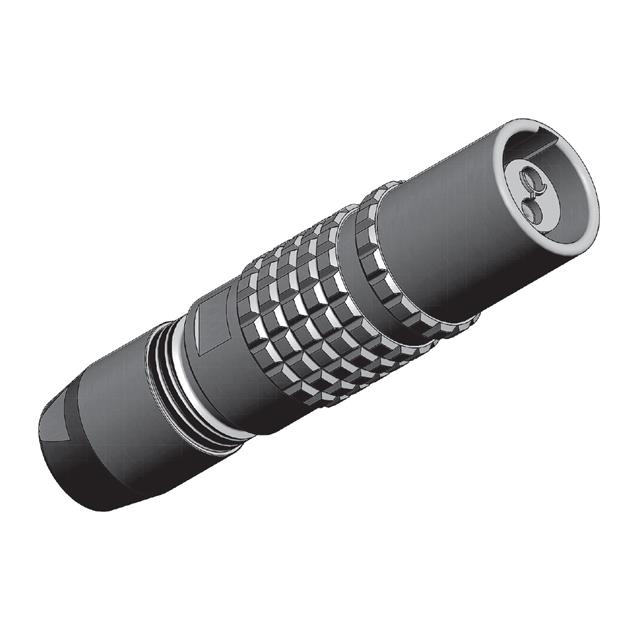

CABLE MOUNT RECEPTACLE 1-PAIR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PHG.0T.511.CLLC35

Active

LEMO

CABLE MOUNT RECEPTACLE 1-PAIR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.10
		10	$ 39.55
		25	$ 38.03
		50	$ 36.76
		100	$ 34.73
		250	$ 33.72

Description

General part information

PHG.0T Series

11 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PHG.0T.511.CLLC35	PHG.0T Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	2.5 mm
Cable Opening	-	1.6 - 4.6 mm
Cable Opening	-	2 - 5 mm
Cable Opening	-	0.063 - 0.181 in
Cable Opening	-	0.079 - 0.197 in
Cable Opening [Max] [custom]	3.5 mm	3.5 mm
Cable Opening [Max] [custom]	0.138 in	0.098 - 0.138 in
Cable Opening [Min] [custom]	0.122 in	0.083 - 0.122 in
Cable Opening [Min] [custom]	3.1 mm	2.1 - 3.1 mm
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	-	59 Áin
Contact Finish Thickness - Mating	-	1.5 Ám
Contact Material	-	Bronze
Current Rating (Amps)	-	6.5 - 8 A
Fastening Type	Detent Lock, Push-Pull	Push-Pull, Detent Lock
Features	Backshell	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof	IP66/IP68, IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	-	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	11	11
Operating Temperature [Max]	250 °C	200 - 250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	-	303 - 305
Shielding	Shielded	Shielded
Termination	-	Crimp

PHG.0T Series

CONN RCPT FMALE 5POS GOLD CRIMP

Part	Current Rating (Amps)	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Contact Material	Connector Type	Shell Material	Insert Material	Fastening Type	Material Flammability Rating	Termination	Mounting Type	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Primary Material	Orientation	Shielding	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Color	Contact Finish - Mating	Shell Size - Insert	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Number of Positions	Cable Opening [Max] [custom]
LEMO PHG.0T.305.CYMC25Z	6.5 A	IP66/IP68	59 Áin	1.5 Ám	Backshell	Bronze	Receptacle, Female Sockets	Brass	Polyetheretherketone (PEEK)	Push-Pull	UL94 V-0	Crimp	Free Hanging (In-Line)	Brass, Chrome	-55 °C	200 °C	Chrome	Metal	G	Shielded	2.1 mm	2.5 mm	0.083 in	0.098 in	Silver	Gold	305
LEMO PHG.0T.305.CLLC50Z	6.5 A	IP66/IP68	59 Áin	1.5 Ám	Backshell	Bronze	Receptacle, Female Sockets	Brass	Polyetheretherketone (PEEK)	Push-Pull	UL94 V-0		Free Hanging (In-Line)	Brass, Chrome	-55 °C	200 °C	Chrome	Metal	G	Shielded					Silver	Gold	305	4.6 mm	5 mm	0.181 in	0.197 in
LEMO PHG.0T.303.CYMC20Z	8 A	IP66/IP68	59 Áin	1.5 Ám	Backshell	Bronze	Receptacle, Female Sockets	Brass	Polyetheretherketone (PEEK)	Push-Pull	UL94 V-0	Crimp	Free Hanging (In-Line)	Brass, Chrome	-55 °C	200 °C	Chrome	Metal	G	Shielded					Silver	Gold	303	1.6 mm	2 mm	0.063 in	0.079 in
LEMO PHG.0T.511.CLLC35		IP68 - Dust Tight, Waterproof			Backshell		Receptacle, Female Sockets	Brass	Polyetheretherketone (PEEK)	Detent Lock, Push-Pull			Free Hanging (In-Line)	Brass, Chrome	-55 °C	250 °C	Chrome	Metal	G	Shielded	3.1 mm		0.122 in	0.138 in	Silver	Gold						11	3.5 mm
