S25FL064LABNFM041

Active

Infineon Technologies

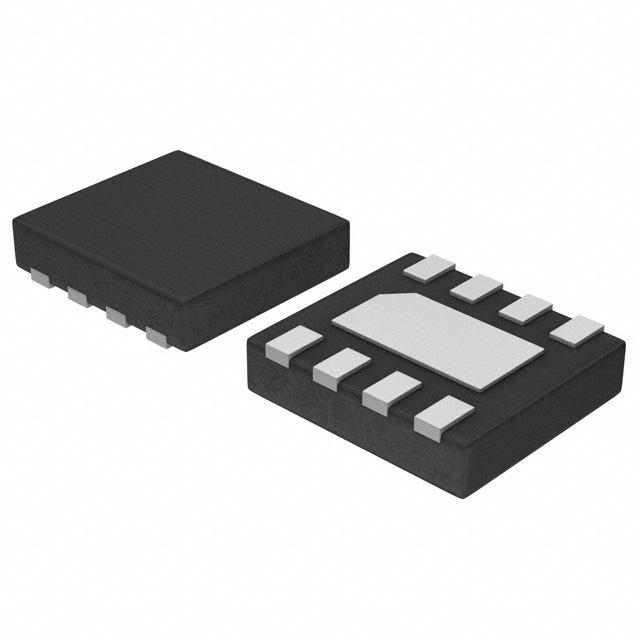

IC FLASH 64MBIT SPI/QUAD 8USON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S25FL064LABNFM041

Active

Infineon Technologies

IC FLASH 64MBIT SPI/QUAD 8USON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S25FL064LABNFM041

Clock Frequency	108 MHz
Memory Format	FLASH
Memory Interface	Quad I/O, QPI, SPI
Memory Organization	8M x 8
Memory Size	64 Gbit
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-UDFN Exposed Pad
Supplier Device Package	8-USON (4x4)
Technology	FLASH - NOR
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V

S25FL064 Series

Part	Memory Interface	Package / Case [x]	Package / Case	Package / Case [y]	Qualification	Memory Organization	Clock Frequency	Grade	Memory Format	Supplier Device Package	Mounting Type	Memory Type	Memory Size	Voltage - Supply [Min]	Voltage - Supply [Max]	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]
Infineon Technologies S25FL064LABMFB003	QPI Quad I/O SPI	0.295 in	16-SOIC	7.5 mm	AEC-Q100	8M x 8	108 MHz	Automotive	FLASH	16-SOIC	Surface Mount	Non-Volatile	64 Gbit	2.7 V	3.6 V	FLASH - NOR	105 °C	-40 °C
Infineon Technologies S25FL064LABMFB001	QPI Quad I/O SPI	0.295 in	16-SOIC	7.5 mm	AEC-Q100	8M x 8	108 MHz	Automotive	FLASH	16-SOIC	Surface Mount	Non-Volatile	64 Gbit	2.7 V	3.6 V	FLASH - NOR	105 °C	-40 °C
Infineon Technologies S25FL064P0XMFB003	SPI - Quad I/O	0.295 in	16-SOIC	7.5 mm	AEC-Q100	8M x 8	104 MHz	Automotive	FLASH	16-SOIC	Surface Mount	Non-Volatile	64 Gbit	2.7 V	3.6 V	FLASH - NOR	105 °C	-40 °C	3 ms	5 µs
Infineon Technologies S25FL064LABMFB010	QPI Quad I/O SPI	0.209 "	8-SOIC	5.3 mm	AEC-Q100	8M x 8	108 MHz	Automotive	FLASH	8-SOIC	Surface Mount	Non-Volatile	64 Gbit	2.7 V	3.6 V	FLASH - NOR	105 °C	-40 °C
Infineon Technologies S25FL064LABNFM041	QPI Quad I/O SPI		8-UDFN Exposed Pad			8M x 8	108 MHz		FLASH	8-USON (4x4)	Surface Mount	Non-Volatile	64 Gbit	2.7 V	3.6 V	FLASH - NOR	125 °C	-40 °C
Infineon Technologies S25FL064P0XNFI003M	SPI - Quad I/O		8-WDFN Exposed Pad			8M x 8	104 MHz		FLASH	8-WSON (6x8)	Surface Mount	Non-Volatile	64 Gbit	2.7 V	3.6 V	FLASH - NOR	85 °C	-40 °C	3 ms	5 µs
Infineon Technologies S25FL064LABNFM043	QPI Quad I/O SPI		8-UDFN Exposed Pad			8M x 8	108 MHz		FLASH	8-USON (4x4)	Surface Mount	Non-Volatile	64 Gbit	2.7 V	3.6 V	FLASH - NOR	125 °C	-40 °C
Infineon Technologies S25FL064LABMFV001	QPI Quad I/O SPI	0.295 in	16-SOIC	7.5 mm		8M x 8	108 MHz		FLASH	16-SOIC	Surface Mount	Non-Volatile	64 Gbit	2.7 V	3.6 V	FLASH - NOR	105 °C	-40 °C
Infineon Technologies S25FL064LABMFA000	QPI Quad I/O SPI	0.295 in	16-SOIC	7.5 mm	AEC-Q100	8M x 8	108 MHz	Automotive	FLASH	16-SOIC	Surface Mount	Non-Volatile	64 Gbit	2.7 V	3.6 V	FLASH - NOR	85 °C	-40 °C
Infineon Technologies S25FL064P0XNFI003	SPI - Quad I/O		8-WDFN Exposed Pad			8M x 8	104 MHz		FLASH	8-WSON (6x8)	Surface Mount	Non-Volatile	64 Gbit	2.7 V	3.6 V	FLASH - NOR	85 °C	-40 °C	3 ms	5 µs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1845	$ 1.62

Description

General part information

S25FL064 Series

FLASH - NOR Memory IC 64Mbit SPI - Quad I/O, QPI 108 MHz 8-USON (4x4)
