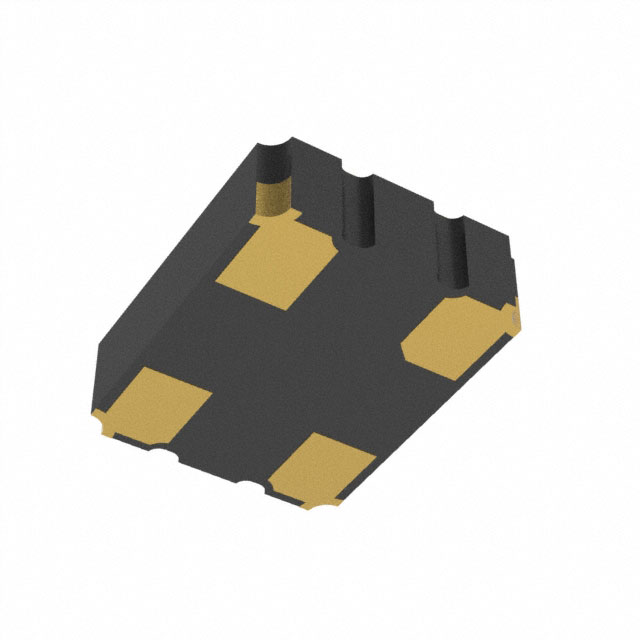

FK2400033Z

Active

Diodes Inc

CMOS OUTPUT CLOCK OSCILLATOR, 24MHZ NOM, SMD, 4 PIN

Search across all available documentation for this part.

Active

Diodes Inc

CMOS OUTPUT CLOCK OSCILLATOR, 24MHZ NOM, SMD, 4 PIN

Technical Specifications

Parameters and characteristics for this part

Specification	FK2400033Z

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	10 ÁA
Current - Supply (Max) [Max]	4 mA
Frequency	24 MHz
Function	Enable/Disable
Height - Seated (Max) [Max] [z]	1.15 mm
Height - Seated (Max) [Max] [z]	0.045 in
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output	CMOS
Package / Case	4-SMD, No Lead
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	2.5 mm
Size / Dimension [y]	0.098 in
Type	XO (Standard)
Voltage - Supply	1.8 V

Part	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Output	Voltage - Supply	Current - Supply (Disable) (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Supply (Max) [Max]	Mounting Type	Type	Function	Base Resonator	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Frequency
Diodes Inc FK2400033Z	4-SMD No Lead	-20 C	70 °C	CMOS	1.8 V	10 ÁA	1.15 mm	0.045 in	4 mA	Surface Mount	XO (Standard)	Enable/Disable	Crystal	3.2 mm	2.5 mm	0.126 in	0.098 in	24 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.78

General part information

24 MHz XO (Standard) CMOS Oscillator 1.8V Enable/Disable 4-SMD, No Lead
