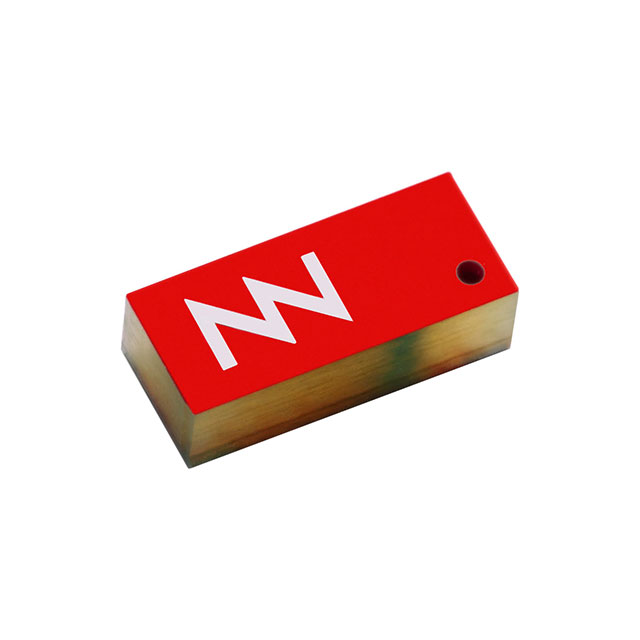

NN03-320

Active

Ignion

DUO MXTEND MULTIBAND ANTENNA

Search across all available documentation for this part.

Active

Ignion

DUO MXTEND MULTIBAND ANTENNA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NN03-320	NN03 Series

Antenna Type	Chip	Chip
Applications	Beidou, GNSS, BT, UWB, GPS, Galileo, 5G	Beidou, GNSS, BT, UWB, GPS, Galileo, 5G, ISM, 2G/3G/4G/5G, Wi-Fi, LTE, Bluetooth
Frequency (Center/Band)	9.8 GHz, 8.7 GHz, 3.4 GHz, 3700 MHz, 1.606 GHz, 6.6 GHz, 4.5 GHz, 8.2 GHz, 1.561 GHz, 5 GHz, 10.3 GHz, 7.7 GHz, 6.1 GHz, 9.2 GHz, 1.575 GHz, 5.5 GHz, 4 GHz, 3.5 GHz, 7.1 GHz, 2.45 GHz	1.561 - 3700 GHz
Frequency Group	Ultra Wide Band	Ultra Wide Band
Frequency Range [Max]	10.6 GHz	3.8 - 10.6 GHz
Frequency Range [Min]	1.56 GHz	1.56 - 698 GHz
Gain	2.6 dBi	2.4 - 2.6 dBi
Height (Max)	-	1 mm
Height (Max)	-	0.039 in
Height (Max) [Max]	2 mm	2 mm
Height (Max) [Max]	0.079 in	0.079 in
Mounting Type	Surface Mount	Surface Mount
Number of Bands	3	3 - 12
RF Family/Standard	WiFi, Bluetooth, Cellular, Navigation	WiFi, Bluetooth, Cellular, Navigation
Termination	Solder	Solder
VSWR	2.5	2.5 - 3

DUO MXTEND MULTIBAND ANTENNA

Part	Frequency (Center/Band)	Frequency Group	Mounting Type	Applications	Frequency Range [Max]	Frequency Range [Min]	RF Family/Standard	VSWR	Number of Bands	Termination	Gain	Antenna Type	Height (Max) [Max]	Height (Max) [Max]	Height (Max) [Max] [z]	Height (Max) [Max] [z]
Ignion NN03-320	1.561 GHz, 1.575 GHz, 1.606 GHz, 2.45 GHz, 3.4 GHz, 3.5 GHz, 4 GHz, 4.5 GHz, 5 GHz, 5.5 GHz, 6.1 GHz, 6.6 GHz, 7.1 GHz, 7.7 GHz, 8.2 GHz, 8.7 GHz, 9.2 GHz, 9.8 GHz, 10.3 GHz, 3700 MHz	Ultra Wide Band	Surface Mount	5G, Beidou, BT, Galileo, GNSS, GPS, UWB	10.6 GHz	1.56 GHz	Bluetooth, Cellular, Navigation, WiFi	2.5	3	Solder	2.6 dBi	Chip	2 mm	0.079 in
Ignion NN03-310	1.561 GHz, 1.575 GHz, 1.606 GHz, 1.7 GHz, 1.8 GHz, 1.9 GHz, 2 GHz, 2.1 GHz, 2.3 GHz, 2.45 GHz, 2.5 GHz, 2.6 GHz, 3.5 GHz, 3.8 GHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 3700 MHz	Ultra Wide Band	Surface Mount	2G/3G/4G/5G, Bluetooth, GNSS, ISM, LTE, UWB, Wi-Fi	3.8 GHz	698 MHz	Bluetooth, Cellular, Navigation, WiFi	3	12	Solder	2.4 dBi	Chip			1 mm	0.039 in
