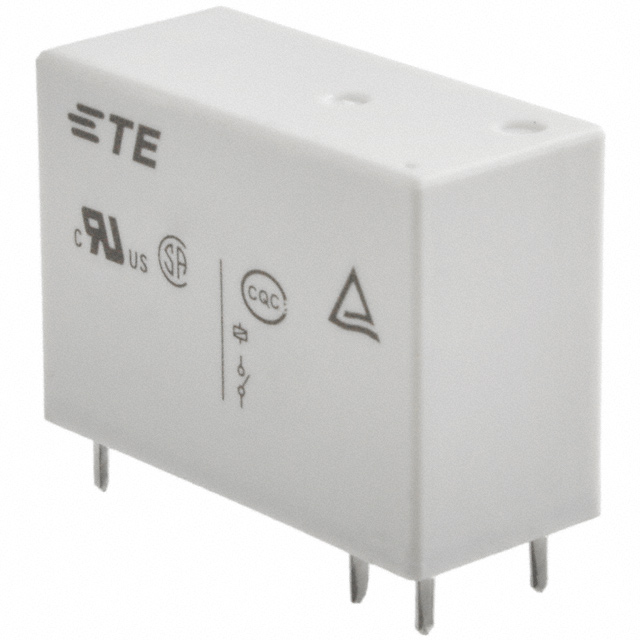

OZ-SS-112DM1,200

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 16A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OZ-SS-112DM1,200

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 16A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OZ-SS-112DM1,200

Approval Agency	CQC, UR, CSA, TUV
Coil Current	60 mA
Coil Resistance	200 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	16 A
Load - Max Switching	3840 VA, 380 W
Mounting Type	Through Hole
Must Operate Voltage	8.4 VDC
Must Release Voltage	0.6 VDC
Operate Time	15 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Relay Type	General Purpose
Release Time	8 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage	24 VDC, 240 VAC
Termination Style	PC Pin

OZ-SS Series

Part	Coil Current	Release Time	Must Operate Voltage	Coil Type	Termination Style	Switching Voltage	Coil Resistance	Coil Voltage	Approval Agency	Relay Type	Operate Time	Seal Rating	Load - Max Switching	Contact Form	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating (Current)	Mounting Type	Contact Material	Coil Insulation
TE Connectivity Potter & Brumfield Relays OZ-SS-112LM1,200	44.4 mA	8 ms	9 VDC	Non Latching	PC Pin	24 VDC 240 VAC	270 Ohms	12 VDC	CQC CSA TUV UR	General Purpose	20 ms	Sealed - Flux Protection	380 W 3840 VA	SPST-NO (1 Form A)	0.6 VDC	70 °C	-30 ░C	16 A	Through Hole	Silver Tin Oxide (AgSnO)
TE Connectivity Potter & Brumfield Relays OZ-SS-112L,200	44.4 mA	8 ms	9 VDC	Non Latching	PC Pin	24 VDC 240 VAC	270 Ohms	12 VDC	CQC CSA TUV UR	General Purpose	20 ms	Sealed - Flux Protection	380 W 3840 VA	SPDT (1 Form C)	0.6 VDC	70 °C	-30 ░C	16 A	Through Hole	Silver Cadmium Oxide (AgCdO)
TE Connectivity Potter & Brumfield Relays OZ-SS-112DM1,200	60 mA	8 ms	8.4 VDC	Non Latching	PC Pin	24 VDC 240 VAC	200 Ohms	12 VDC	CQC CSA TUV UR	General Purpose	15 ms	Sealed - Flux Protection	380 W 3840 VA	SPST-NO (1 Form A)	0.6 VDC	60 °C	-30 ░C	16 A	Through Hole	Silver Tin Oxide (AgSnO)
TE Connectivity Potter & Brumfield Relays OZ-SS-124LF,000	21.8 mA	8 ms	16.8 VDC	Non Latching	PC Pin	24 VDC 240 VAC		24 VDC	CQC CSA TUV UR	General Purpose	20 ms	Sealed - Flux Protection	380 W 3840 VA	SPDT (1 Form C)	1.2 VDC	70 °C	-30 ░C	16 A	Through Hole	Silver Cadmium Oxide (AgCdO)	Class F
TE Connectivity Potter & Brumfield Relays OZ-SS-148LM1,200	10.9 mA	8 ms	36 VDC	Non Latching	PC Pin	24 VDC 240 VAC	4.4 kOhms	48 VDC	CQC CSA TUV UR	General Purpose	20 ms	Sealed - Flux Protection	380 W 3840 VA	SPST-NO (1 Form A)	2.4 VDC	70 °C	-30 ░C	16 A	Through Hole	Silver Tin Oxide (AgSnO)
TE Connectivity Potter & Brumfield Relays OZ-SS-105L,200	106 mA	8 ms	3.75 VDC	Non Latching	PC Pin	24 VDC 240 VAC	47 Ohms	5 VDC	CQC CSA TUV UR	General Purpose	20 ms	Sealed - Flux Protection	380 W 3840 VA	SPDT (1 Form C)	0.25 VDC	70 °C	-30 ░C	16 A	Through Hole	Silver Cadmium Oxide (AgCdO)
TE Connectivity Potter & Brumfield Relays OZ-SS-109LF,000	58.1 mA	8 ms	6.8 VDC	Non Latching	PC Pin	24 VDC 240 VAC	155 Ohms	9 VDC	CQC CSA TUV UR	General Purpose	20 ms	Sealed - Flux Protection	380 W 3840 VA	SPDT (1 Form C)	0.45 VDC	70 °C	-30 ░C	16 A	Through Hole	Silver Cadmium Oxide (AgCdO)	Class F
TE Connectivity Potter & Brumfield Relays OZ-SS-105L1	106 mA	8 ms	3.75 VDC	Non Latching	PC Pin	24 VDC 240 VAC	47 Ohms	5 VDC	CQC CSA TUV UR	General Purpose	20 ms	Sealed - Flux Protection	380 W 3840 VA	SPDT (1 Form C)	0.25 VDC	70 °C	-30 ░C	16 A	Through Hole	Silver Tin Oxide (AgSnO)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

OZ-SS Series

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
