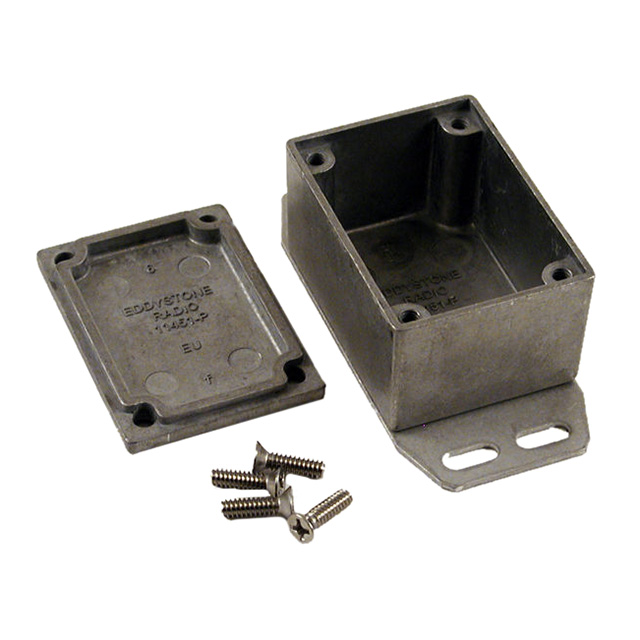

Specification	1590HF

Area (L x W)	3.08 in²
Color	Unpainted
Container Type	Box
Design	Cover Included
Features	Mounting Flange, EMI Shielded
Height	1.28 in
Material	Aluminum
Ratings	IP54
Size / Dimension Length	2.067 in
Size / Dimension Width	1.496 in
Thickness	0.08 in
Weight	0.125 lb

1590 Series

...

Part	Accessory Type	For Use With/Related Products	Weight	Area (L x W)	Material	Design	Ratings	Features	Thickness	Container Type	Height	Color	Size / Dimension Length	Size / Dimension Width	Screw Head Type	Thread Size (Min)	Thread Size (Max)	Drive Type	Type	Length - Overall (Min)	Length - Overall	Length - Overall (Max)	Plating
Hammond Manufacturing 1590Z119G	Gasket Seal	1590Z 119 Series
Hammond Manufacturing 1590WNFL			0.391 lb	12.3 in²	Aluminum	Cover Included	IP65	Mounting Flange Watertight	0.08 in	Box	1.577 in	Unpainted	4.744 in	2.598 in
Hammond Manufacturing 1590WEEBK				37.3 in²	Aluminum	Cover Included	IP65	Watertight	0.089 in	Box	3.327 in	Black	7.882 in	4.732 in
Hammond Manufacturing 1590TRPCOR				20.1 in²	Aluminum	Cover Included	IP54	EMI Shielded	0.079 in	Stomp Box	1.535 in	Orange	5.946 in	3.74 in
Hammond Manufacturing 1590GFL			0.256 lb	7.75 in²	Aluminum	Cover Included	IP54		0.08 in	Box	1.004 in	Unpainted	3.937 in	1.969 in
Hammond Manufacturing 1590MS50BK															Flat Head	6 mm	32 mm	Phillips	Machine Screw	0.5 in	0.5 in	1 in	Black Oxide
Hammond Manufacturing 1590Z060GY			0.163 lb	3.48 in²	Thick Wall Aluminum	Cover Included	IP68	Watertight	0.08 in	Box	1.181 in	Gray	1.969 in	1.772 in
Hammond Manufacturing 1590DFLBK			1.2 lbs	35 in²	Aluminum	Cover Included	IP54		0.08 in	Box	2.273 in	Black	7.402 in	4.724 in
Hammond Manufacturing 1590WVFLBK			1.1 lbs	22.3 in²	Aluminum	Cover Included	IP65	Mounting Flange Watertight	0.08 in	Box	3.701 in	Black	4.724 in	4.724 in
Hammond Manufacturing 1590CEGASKET	Gasket Seal
