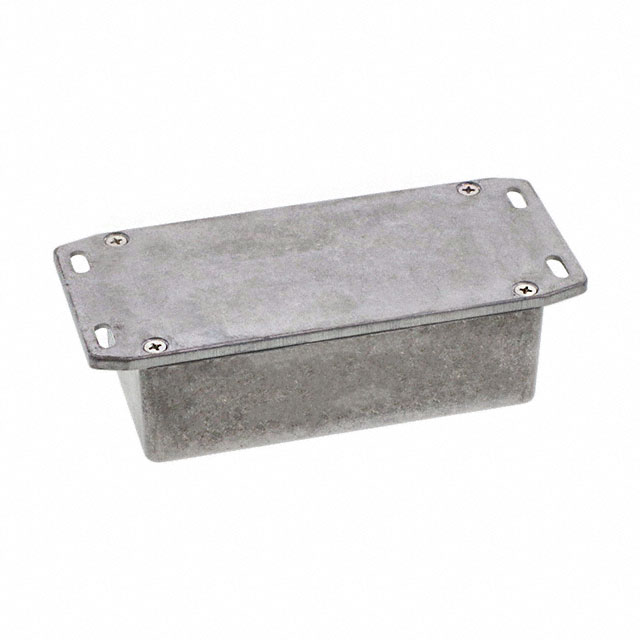

1590WNFL

Active

BOX ALUM UNPTD 4.74"L X 2.6"W

Active

BOX ALUM UNPTD 4.74"L X 2.6"W

Description

General part information

Box Aluminum Unpainted Cover Included 4.744" L x 2.598" W (120.50mm x 65.99mm) X 1.577" (40.06mm)

Parameters and characteristics for this part

...

Part	Accessory Type	For Use With/Related Products	Weight	Area (L x W)	Material	Design	Ratings	Features	Thickness	Container Type	Height	Color	Size / Dimension Length	Size / Dimension Width	Screw Head Type	Thread Size (Min)	Thread Size (Max)	Drive Type	Type	Length - Overall (Min)	Length - Overall	Length - Overall (Max)	Plating
Hammond Manufacturing 1590Z119G	Gasket Seal	1590Z 119 Series
Hammond Manufacturing 1590WNFL			0.391 lb	12.3 in²	Aluminum	Cover Included	IP65	Mounting Flange Watertight	0.08 in	Box	1.577 in	Unpainted	4.744 in	2.598 in
Hammond Manufacturing 1590WEEBK				37.3 in²	Aluminum	Cover Included	IP65	Watertight	0.089 in	Box	3.327 in	Black	7.882 in	4.732 in
Hammond Manufacturing 1590TRPCOR				20.1 in²	Aluminum	Cover Included	IP54	EMI Shielded	0.079 in	Stomp Box	1.535 in	Orange	5.946 in	3.74 in
Hammond Manufacturing 1590GFL			0.256 lb	7.75 in²	Aluminum	Cover Included	IP54		0.08 in	Box	1.004 in	Unpainted	3.937 in	1.969 in
Hammond Manufacturing 1590MS50BK															Flat Head	6 mm	32 mm	Phillips	Machine Screw	0.5 in	0.5 in	1 in	Black Oxide
Hammond Manufacturing 1590Z060GY			0.163 lb	3.48 in²	Thick Wall Aluminum	Cover Included	IP68	Watertight	0.08 in	Box	1.181 in	Gray	1.969 in	1.772 in
Hammond Manufacturing 1590DFLBK			1.2 lbs	35 in²	Aluminum	Cover Included	IP54		0.08 in	Box	2.273 in	Black	7.402 in	4.724 in
Hammond Manufacturing 1590WVFLBK			1.1 lbs	22.3 in²	Aluminum	Cover Included	IP65	Mounting Flange Watertight	0.08 in	Box	3.701 in	Black	4.724 in	4.724 in
Hammond Manufacturing 1590CEGASKET	Gasket Seal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
