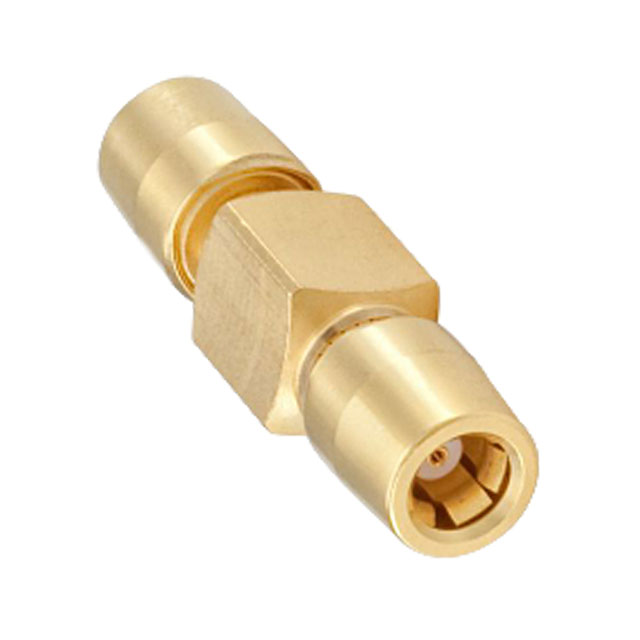

59K101-K00L5

Active

Rosenberger

CONN ADAPT JACK-JACK SMB 50 OHM

Search across all available documentation for this part.

Active

Rosenberger

CONN ADAPT JACK-JACK SMB 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	59K101-K00L5

Adapter Series	SMB to SMB
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	SMB Jack, Female Socket
Convert To (Adapter End)	Female Socket, SMB Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Style	Impedance	Dielectric Material	Fastening Type	Convert From (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Center Gender	Frequency - Max [Max]	Conversion Type	Center Contact Plating	Body Material	Mating Cycles	Body Finish	Mounting Type	Center Contact Material	Convert To (Adapter End)	Adapter Series	Adapter Type
Rosenberger 59K101-K00L5	Straight	50 Ohms	Polytetrafluoroethylene (PTFE)	Snap-On	Female Socket SMB Jack	155 °C	-55 °C	Female to Female	4 GHz	Same Series	Gold	Brass	500	Gold	Free Hanging (In-Line)	Beryllium Copper	Female Socket SMB Jack	SMB to SMB	Jack to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMB Jack, Female Socket To SMB Jack, Female Socket 50 Ohms
