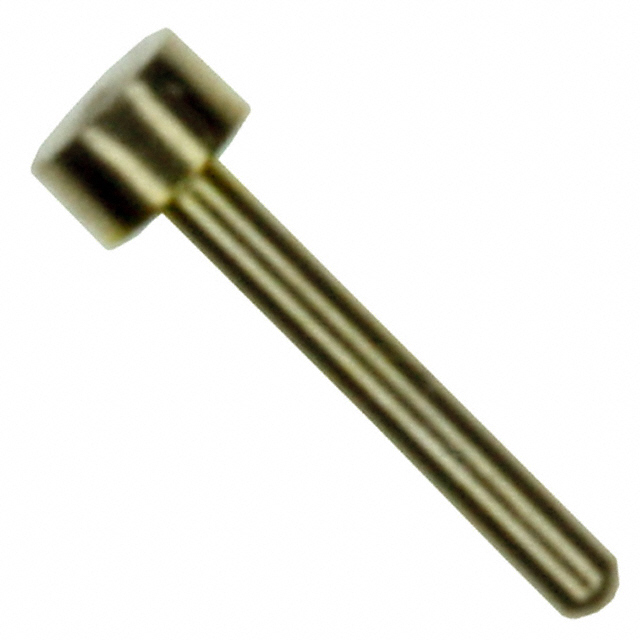

4689-0-00-15-00-00-33-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.015DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
4689-0-00-15-00-00-33-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.015DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4689-0-00-15-00-00-33-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.035 in |
| Flange Diameter [diameter] | 0.89 mm |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.105 in |
| Length - Above Flange [x] | 2.67 mm |
| Length - Overall [x] | 3.18 mm |
| Length - Overall [x] | 0.125 in |
| Mounting Hole Diameter [diameter] | 0.019 in |
| Mounting Hole Diameter [diameter] | 0.48 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.38 mm |
| Pin Size - Above Flange [diameter] | 0.015 in |
| Terminal Style | Single End, Nail Head |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.95 | |
| 10 | $ 0.72 | |||
| 25 | $ 0.65 | |||
| 50 | $ 0.60 | |||
| 100 | $ 0.55 | |||
| 250 | $ 0.50 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.43 | |||
| 2500 | $ 0.39 | |||
Description
General part information
4689-0 Series
PC Pin Terminal Connector Through Hole Gold 0.015" (0.38mm) Dia
