2902352

Active

Phoenix Contact

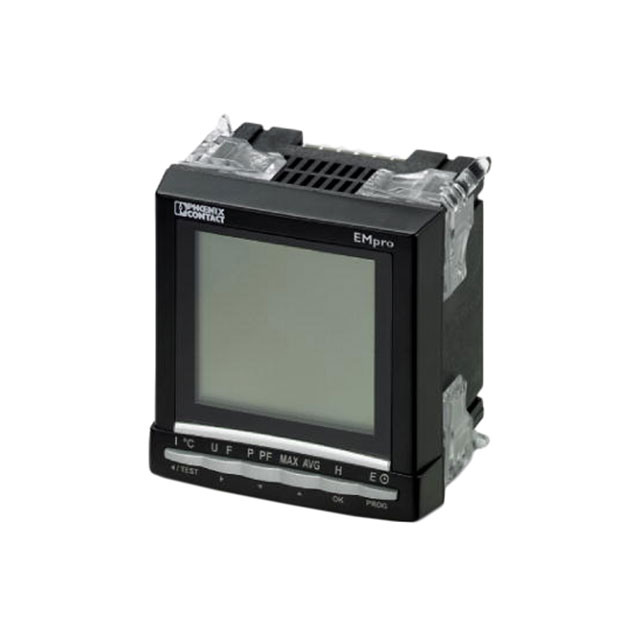

POWER METER LCD PANEL MOUNT

Search across all available documentation for this part.

Active

Phoenix Contact

POWER METER LCD PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	2902352

Display Type	LCD - Black Characters, Backlight
Measuring Range [Max]	9999 A, 700 VAC
Measuring Range [Min]	11 VAC, 0 A
Measuring Type	Current (3-Phase), Wattage, Voltage
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Output Type	1.81 mOhm
Panel Cutout Dimensions [x]	92 mm
Panel Cutout Dimensions [y]	92 mm
Termination Style	Screw Terminal
Type	Energy Monitor
Voltage - Supply [Max]	48 V
Voltage - Supply [Min]	12 V
Weight	0.882 lb
Weight	400.07 g

POWER METER LCD PANEL MOUNT

Part	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Termination Style	Type	Display Type	Measuring Range [Max]	Measuring Range [Min]	Weight	Weight	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Measuring Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type
Phoenix Contact 2902352	55 °C	-10 °C	Screw Terminal	Energy Monitor	LCD - Black Characters, Backlight	700 VAC, 9999 A	0 A, 11 VAC	0.882 lb	400.07 g	92 mm	92 mm	Current (3-Phase), Voltage, Wattage	12 V	48 V	1.81 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Energy Monitor LCD - Black Characters, Backlight Display Panel Mount
