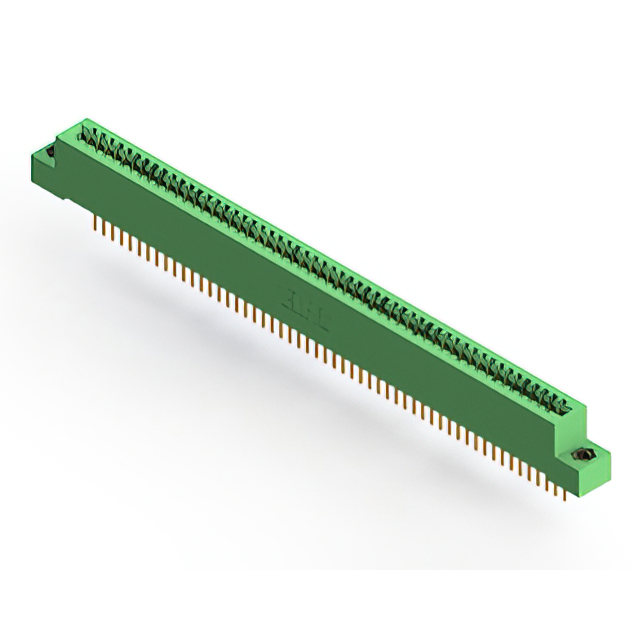

842-054-523-107

Active

EDAC Inc.

CONN EDGE SINGLE FML 54POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

842-054-523-107

Active

EDAC Inc.

CONN EDGE SINGLE FML 54POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	842-054-523-107

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	54
Number of Positions/Bay/Row [custom]	54
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

842-054 Series

...

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Gender	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Card Type	Number of Rows	Contact Finish	Material - Insulation	Pitch [x]	Pitch [x]	Contact Type	Flange Feature	Read Out	Termination	Color	Number of Positions/Bay/Row [custom]	Mounting Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions/Bay/Row [custom]	Features
EDAC Inc. 842-054-540-108	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	1	10 Áin	0.25 Ám	Non Specified - Single Edge	1	Gold	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	Single	Wire Wrap	Green	54	Through Hole	54	125 °C	-40 °C
EDAC Inc. 842-054-559-102	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	1	10 Áin	0.25 Ám	Non Specified - Single Edge	1	Gold	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	Cantilever	Flush Mount Top Opening Unthreaded	Single	Solder	Green	54	Through Hole Right Angle	54	125 °C	-40 °C	3.25 mm	0.128 "
EDAC Inc. 842-054-544-108	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	1	10 Áin	0.25 Ám	Non Specified - Single Edge	1	Gold	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	Single	Wire Wrap	Green	54	Through Hole	54	125 °C	-40 °C
EDAC Inc. 842-054-559-208	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	2	10 Áin	0.25 Ám	Non Specified - Dual Edge	2	Gold	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	Dual	Solder	Green		Through Hole Right Angle	54	125 °C	-40 °C			27
EDAC Inc. 842-054-556-201	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	2	10 Áin	0.25 Ám	Non Specified - Dual Edge	2	Gold	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	Cantilever		Dual	Solder	Green		Board Edge Straddle Mount	54	125 °C	-40 °C			27	Card Extender
EDAC Inc. 842-054-523-202	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	2	10 Áin	0.25 Ám	Non Specified - Dual Edge	2	Gold	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	Cantilever	Flush Mount Top Opening Unthreaded	Dual	Solder	Green		Through Hole	54	125 °C	-40 °C	3.25 mm	0.128 "	27
EDAC Inc. 842-054-523-107	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	1	10 Áin	0.25 Ám	Non Specified - Single Edge	1	Gold	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	Cantilever	Flush Mount M3 Threaded Insert Top Opening	Single	Solder	Green	54	Through Hole	54	125 °C	-40 °C
EDAC Inc. 842-054-556-202	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	2	10 Áin	0.25 Ám	Non Specified - Dual Edge	2	Gold	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	Cantilever	Flush Mount Top Opening Unthreaded	Dual	Solder	Green		Board Edge Straddle Mount	54	125 °C	-40 °C	3.25 mm	0.128 "	27	Card Extender
EDAC Inc. 842-054-542-201	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	2	10 Áin	0.25 Ám	Non Specified - Dual Edge	2	Gold	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	Cantilever		Dual	Wire Wrap	Green		Through Hole	54	125 °C	-40 °C			27
EDAC Inc. 842-054-559-103	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	1	10 Áin	0.25 Ám	Non Specified - Single Edge	1	Gold	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	Cantilever	Floating Bobbin Flush Mount	Single	Solder	Green	54	Through Hole Right Angle	54	125 °C	-40 °C	2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 152.80
Newark	Each	1	$ 197.45
		100	$ 161.05
		250	$ 146.86
		500	$ 133.91
		1000	$ 110.88

Description

General part information

842-054 Series

54 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
