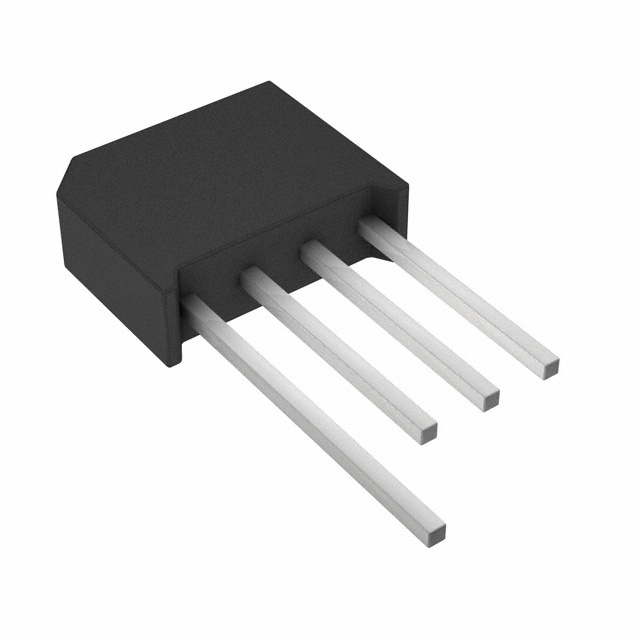

KBL406-G

Active

Comchip Technology

BRIDGE RECT 1PHASE 600V 4A KBL

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1PHASE 600V 4A KBL

Technical Specifications

Parameters and characteristics for this part

Specification	KBL406-G

Current - Average Rectified (Io)	4 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	KBL, 4-SIP
Supplier Device Package	KBL
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	600 V

BRIDGE RECT 1PHASE 600V 4A KBL

Part	Voltage - Peak Reverse (Max) [Max]	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Diode Type	Package / Case	Supplier Device Package	Technology	Current - Reverse Leakage @ Vr
Comchip Technology KBL406-G	600 V	4 A	1.1 V	Through Hole	-55 °C	150 °C	Single Phase	4-SIP, KBL	KBL	Standard	10 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 600 V Through Hole KBL
