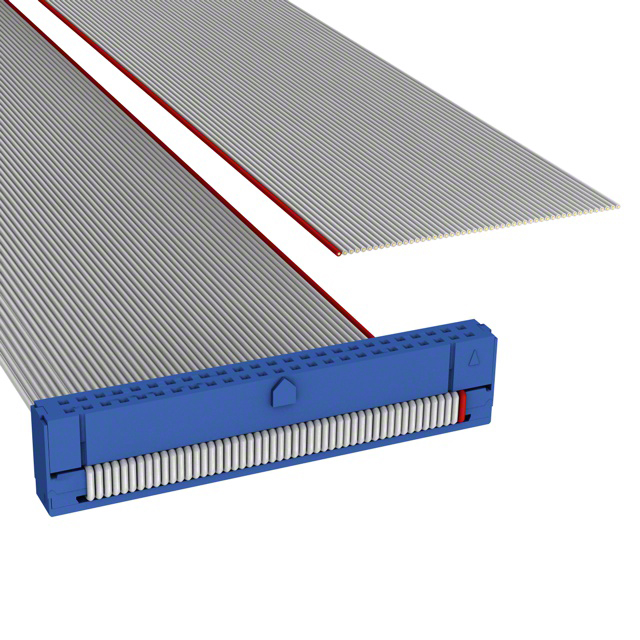

C1DXG-5036G

Active

CW Industries

IDC CABLE - CKR50G/AE50G/X

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKR50G/AE50G/X

Technical Specifications

Parameters and characteristics for this part

Specification	C1DXG-5036G

Cable Termination	IDC
Connector Type	Socket to Cable
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key, Strain Relief
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	50
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Pitch - Cable	Pitch - Cable	Connector Type	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Contact Finish	Shielding	Features	Number of Rows	Cable Termination	Number of Positions	Contact Finish Thickness	Contact Finish Thickness
CW Industries C1DXG-5036G	0.05 "	1.27 mm	Socket to Cable	0.1 in	2.54 mm	3 ft	914.4 mm	Gold	Unshielded	Polarizing Key Strain Relief	2	IDC	50	10 Áin	0.25 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
