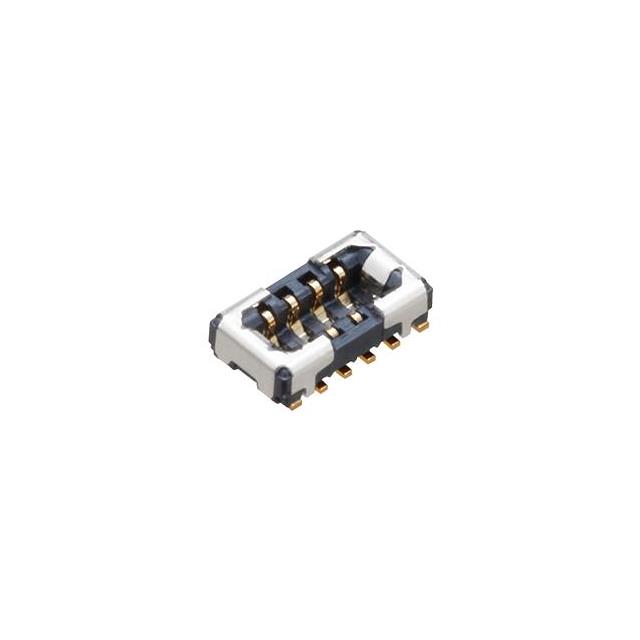

AXF5K0612A

Active

Panasonic Electric Works

I/C RECTANGULAR

Search across all available documentation for this part.

Active

Panasonic Electric Works

I/C RECTANGULAR

Technical Specifications

Parameters and characteristics for this part

Specification	AXF5K0612A

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.023 in
Height Above Board	0.59 mm
Mated Stacking Heights	0.6 mm
Mounting Type	Surface Mount
Number of Positions	6
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Mated Stacking Heights	Number of Rows	Connector Type	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Number of Positions	Features	Mounting Type	Contact Finish
Panasonic Electric Works AXF5K0612A	0.6 mm	2	Outer Shroud Contacts Socket	0.35 mm	0.014 in	0.023 in	0.59 mm	6	Solder Retention	Surface Mount	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold

Technical documentation and resources

No documents available
