PAC.M0.8GL.AC52A

Active

LEMO

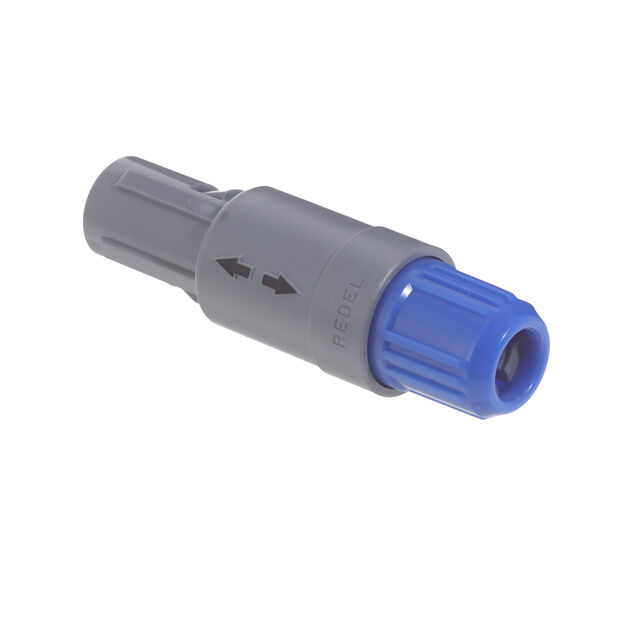

CONN PLUG MALE 8P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PAC.M0.8GL.AC52A

Active

LEMO

CONN PLUG MALE 8P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.04
		10	$ 18.42
		25	$ 17.63
		50	$ 17.06
		100	$ 16.49
		250	$ 15.58
		500	$ 15.13

Description

General part information

PAC.M0 Series

8 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PAC.M0.8GL.AC52A	PAC.M0 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Polysulfone (PSU)	Polysulfone (PSU)
Cable Opening	-	2.7 mm
Cable Opening	-	0.154 in
Cable Opening	-	3.9 mm
Cable Opening	-	0.106 in
Cable Opening	-	0.209 - 0.256 in
Cable Opening	-	5.3 - 6.5 mm
Cable Opening [Max] [custom]	0.205 in	0.205 in
Cable Opening [Max] [custom]	5.2 mm	5.2 mm
Cable Opening [Min] [custom]	0.157 in	0.157 in
Cable Opening [Min] [custom]	4 mm	4 mm
Color	Gray, Blue	Gray, Yellow, Blue, Red, Green
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	5 A	5 - 10 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	8	2 - 8
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	C	C
Primary Material	Plastic	Plastic
Shell Material	Polysulfone (PSU)	Polysulfone (PSU)
Shell Size - Insert	M08	M02, M04, M08, M05
Shielding	Unshielded	Unshielded

PAC.M0 Series

CONN PLUG MALE 2P GOLD SLDR CUP

Part	Features	Fastening Type	Current Rating (Amps)	Connector Type	Backshell Material, Plating	Ingress Protection	Orientation	Shielding	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Shell Material	Insert Material	Shell Size - Insert	Mounting Type	Number of Positions	Primary Material	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Color	Cable Opening [custom]	Cable Opening [custom]
LEMO PAC.M0.2GL.AC52N	Backshell	Detent Lock, Push-Pull	10 A	Male Pins, Plug	Polysulfone (PSU)	IP50	C	Unshielded	0.157 in	0.205 in	4 mm	5.2 mm	Polysulfone (PSU)	Polyetheretherketone (PEEK)	M02	Free Hanging (In-Line)	2	Plastic	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Gold
LEMO PAC.M0.4GL.AC39J	Backshell	Detent Lock, Push-Pull	8 A	Male Pins, Plug	Polysulfone (PSU)	IP50	C	Unshielded					Polysulfone (PSU)	Polyetheretherketone (PEEK)	M04	Free Hanging (In-Line)	4	Plastic	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Gold	2.7 mm	0.154 in	3.9 mm	0.106 in	Gray, Yellow
LEMO PAC.M0.8GL.AC52A	Backshell	Detent Lock, Push-Pull	5 A	Male Pins, Plug	Polysulfone (PSU)	IP50	C	Unshielded	0.157 in	0.205 in	4 mm	5.2 mm	Polysulfone (PSU)	Polyetheretherketone (PEEK)	M08	Free Hanging (In-Line)	8	Plastic	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Gold					Blue, Gray
LEMO PAC.M0.8GL.AC52RZ	Backshell	Detent Lock, Push-Pull	5 A	Male Pins, Plug	Polysulfone (PSU)	IP50	C	Unshielded	0.157 in	0.205 in	4 mm	5.2 mm	Polysulfone (PSU)	Polyetheretherketone (PEEK)	M08	Free Hanging (In-Line)	8	Plastic	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Gold					Gray, Red
LEMO PAC.M0.4GL.AC52A	Backshell	Detent Lock, Push-Pull	8 A	Male Pins, Plug	Polysulfone (PSU)	IP50	C	Unshielded	0.157 in	0.205 in	4 mm	5.2 mm	Polysulfone (PSU)	Polyetheretherketone (PEEK)	M04	Free Hanging (In-Line)	4	Plastic	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Gold					Blue, Gray
LEMO PAC.M0.5GL.AC52J	Backshell	Detent Lock, Push-Pull	7 A	Male Pins, Plug	Polysulfone (PSU)	IP50	C	Unshielded	0.157 in	0.205 in	4 mm	5.2 mm	Polysulfone (PSU)	Polyetheretherketone (PEEK)	M05	Free Hanging (In-Line)		Plastic	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Gold					Gray, Yellow
LEMO PAC.M0.4GL.AC65G	Backshell	Detent Lock, Push-Pull	8 A	Male Pins, Plug	Polysulfone (PSU)	IP50	C	Unshielded					Polysulfone (PSU)	Polyetheretherketone (PEEK)	M04	Free Hanging (In-Line)	4	Plastic	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Gold					Gray	0.209 in, 0.256 in	5.3 mm, 6.5 mm
LEMO PAC.M0.4GL.AC52R	Backshell	Detent Lock, Push-Pull	8 A	Male Pins, Plug	Polysulfone (PSU)	IP50	C	Unshielded	0.157 in	0.205 in	4 mm	5.2 mm	Polysulfone (PSU)	Polyetheretherketone (PEEK)	M04	Free Hanging (In-Line)	4	Plastic	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Gold					Gray, Red
LEMO PAC.M0.5GL.AC65V	Backshell	Detent Lock, Push-Pull	7 A	Male Pins, Plug	Polysulfone (PSU)	IP50	C	Unshielded					Polysulfone (PSU)	Polyetheretherketone (PEEK)	M05	Free Hanging (In-Line)		Plastic	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Gold					Gray, Green	0.209 in, 0.256 in	5.3 mm, 6.5 mm
LEMO PAC.M0.2GL.AC39G	Backshell	Detent Lock, Push-Pull	10 A	Male Pins, Plug	Polysulfone (PSU)	IP50	C	Unshielded					Polysulfone (PSU)	Polyetheretherketone (PEEK)	M02	Free Hanging (In-Line)	2	Plastic	Automotive, Industrial, Medical, Testing Equipment & Measurement	150 °C	-50 °C	Gold	2.7 mm	0.154 in	3.9 mm	0.106 in	Gray
