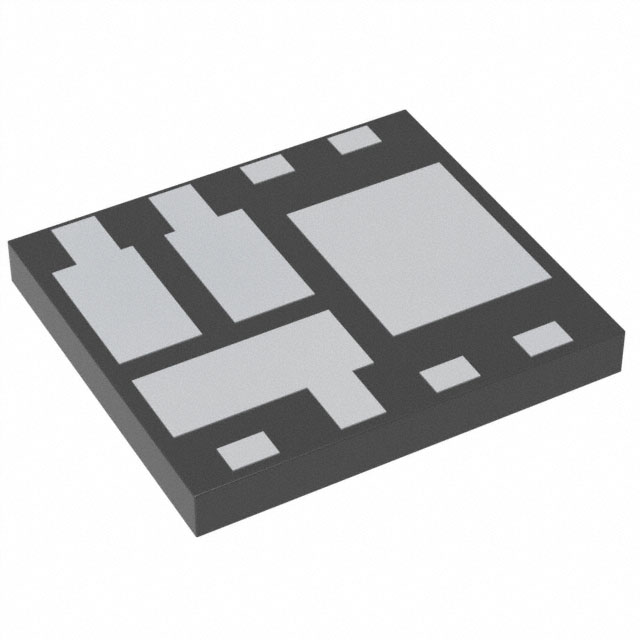

XCM414B041D2-G

Active

Torex Semiconductor Ltd

VOLTAGE REGULATOR WITH BRIDGE DI

Search across all available documentation for this part.

Active

Torex Semiconductor Ltd

VOLTAGE REGULATOR WITH BRIDGE DI

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output	Applications	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Supplier Device Package
Torex Semiconductor Ltd XCM414B044D2-G	4.4 V	Converter Wireless Devices	1	26 V	2 V	85 °C	-40 °C	Surface Mount	8-PowerXDFN	USP-8B10
Torex Semiconductor Ltd XCM414B069D2-G	6.9 V	Converter Wireless Devices	1	26 V	2 V	85 °C	-40 °C	Surface Mount	8-PowerXDFN	USP-8B10
Torex Semiconductor Ltd XCM414B063D2-G	6.3 V	Converter Wireless Devices	1	26 V	2 V	85 °C	-40 °C	Surface Mount	8-PowerXDFN	USP-8B10
Torex Semiconductor Ltd XCM414B109D2-G	10.9 V	Converter Wireless Devices	1	26 V	2 V	85 °C	-40 °C	Surface Mount	8-PowerXDFN	USP-8B10
Torex Semiconductor Ltd XCM414B068D2-G	6.8 V	Converter Wireless Devices	1	26 V	2 V	85 °C	-40 °C	Surface Mount	8-PowerXDFN	USP-8B10
Torex Semiconductor Ltd XCM414B105D2-G	10.5 V	Converter Wireless Devices	1	26 V	2 V	85 °C	-40 °C	Surface Mount	8-PowerXDFN	USP-8B10
Torex Semiconductor Ltd XCM414B034D2-G	3.4 V	Converter Wireless Devices	1	26 V	2 V	85 °C	-40 °C	Surface Mount	8-PowerXDFN	USP-8B10
Torex Semiconductor Ltd XCM414B107D2-G	10.7 V	Converter Wireless Devices	1	26 V	2 V	85 °C	-40 °C	Surface Mount	8-PowerXDFN	USP-8B10
Torex Semiconductor Ltd XCM414B055D2-G	5.5 V	Converter Wireless Devices	1	26 V	2 V	85 °C	-40 °C	Surface Mount	8-PowerXDFN	USP-8B10
Torex Semiconductor Ltd XCM414B041D2-G	4.1 V	Converter Wireless Devices	1	26 V	2 V	85 °C	-40 °C	Surface Mount	8-PowerXDFN	USP-8B10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

- Converter, Wireless Devices Voltage Regulator IC 1 Output USP-8B10
