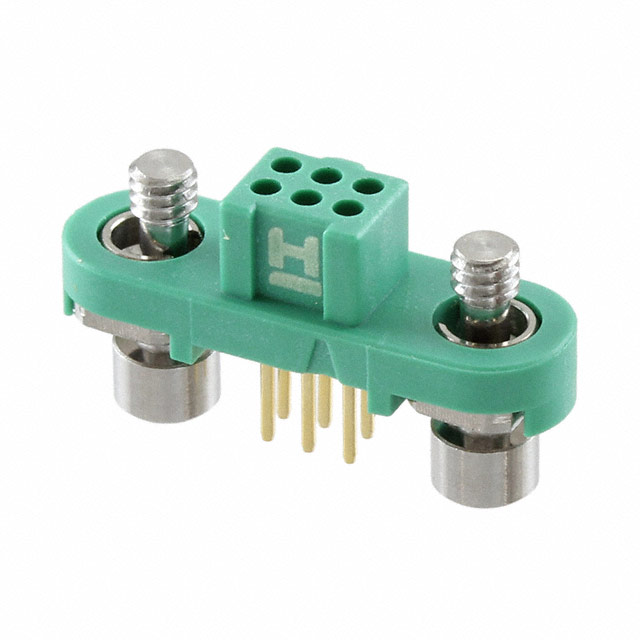

G125-FV10605F1P

Active

Harwin Inc.

CONNECTOR, RCPT, 6POS, 2ROW, 1.25MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsG125 Spec Sheet Datasheet +5

G125-FV10605F1P

Active

Harwin Inc.

CONNECTOR, RCPT, 6POS, 2ROW, 1.25MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsG125 Spec Sheet Datasheet +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G125-FV10605F1P

Applications	Automotive, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	2 A
Features	Jackscrews, Pick and Place, Polarizing Key
Insulation Color	Green
Insulation Height	0.207 in
Insulation Height	5.25 mm
Insulation Material	Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Row Spacing - Mating	0.049 in
Row Spacing - Mating	1.25 mm
Style	Board to Board, Cable
Termination	Solder

G125-FV1 Series

Part	Contact Finish - Mating	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Mounting Type	Style	Insulation Color	Features	Number of Positions	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Voltage Rating	Contact Shape	Contact Material	Current Rating (Amps)	Termination	Connector Type	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Insulation Material	Mated Stacking Heights	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Fastening Type	Number of Positions [custom]	Number of Positions [custom]
Harwin Inc. G125-FV11005F2R	Gold	UL94 V-0	1.25 mm	0.049 in	All	Through Hole	Board to Board Cable	Green	Mating Flange Pick and Place Polarizing Key	10	Female Socket	0.203 Ám	8 Áin	0.207 in	5.25 mm	8 µin	0.203 µm	Gold	450 V	Circular	Copper Alloy	2 A	Solder	Receptacle	2	0.049 in	1.25 mm	0.118 in	3 mm	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	7.25 mm 7.33 mm	-65 ░C	150 °C
Harwin Inc. G125-FV11205F2P	Gold	UL94 V-0	1.25 mm	0.049 in	All	Through Hole	Board to Board Cable	Green	Pick and Place Polarizing Key	12	Female Socket	0.203 Ám	8 Áin	0.207 in	5.25 mm	8 µin	0.203 µm	Gold	450 V	Circular	Copper Alloy	2 A	Solder	Receptacle	2	0.049 in	1.25 mm	0.118 in	3 mm	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	7.25 mm 7.33 mm	-65 ░C	150 °C
Harwin Inc. G125-FV10605F1P	Gold	UL94 V-0	1.25 mm	0.049 in	All	Through Hole	Board to Board Cable	Green	Jackscrews Pick and Place Polarizing Key	6	Female Socket	0.203 Ám	8 Áin	0.207 in	5.25 mm			Gold		Circular	Copper Alloy	2 A	Solder	Receptacle	2	0.049 in	1.25 mm			Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)		-65 ░C	150 °C	Automotive General Purpose
Harwin Inc. G125-FV12605L0P	Gold	UL94 V-0	1.25 mm	0.049 in	All	Through Hole	Board to Board Cable	Green	Pick and Place Polarizing Key	26	Female Socket	0.203 Ám	8 Áin	0.207 in	5.25 mm			Gold		Circular	Copper Alloy	2 A	Solder	Receptacle	2	0.049 in	1.25 mm	0.118 in	3 mm	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)		-65 ░C	150 °C	Automotive General Purpose	Latch Holder
Harwin Inc. G125-FV15005F3P	Gold	UL94 V-0	1.25 mm	0.049 in	All	Through Hole	Board to Board Cable	Green	Jackscrews Pick and Place Polarizing Key	50	Female Socket	0.203 Ám	8 Áin	0.207 in	5.25 mm	8 µin	0.203 µm	Gold	450 V	Circular	Copper Alloy	2 A	Solder	Receptacle	2	0.049 in	1.25 mm	0.118 in	3 mm	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	7.25 mm 7.33 mm	-65 ░C	150 °C
Harwin Inc. G125-FV10805F3-1AB1ABP	Gold	UL94 V-0	1.25 mm	0.049 in	All	Through Hole	Board to Board Cable	Green	Mating Flange Mounting Flange Pick and Place Polarizing Key		Female Socket			0.207 in	5.25 mm			Gold	450 V	Circular	Beryllium Copper	2 A 10 A	Solder	Receptacle	2	0.049 in	1.25 mm	0.118 in	3 mm	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)		-65 ░C	150 °C			2	8
Harwin Inc. G125-FV10605F2P	Gold	UL94 V-0	1.25 mm	0.049 in	All	Through Hole	Board to Board Cable	Green	Pick and Place Polarizing Key	6	Female Socket	0.203 Ám	8 Áin	0.207 in	5.25 mm	8 µin	0.203 µm	Gold	450 V	Circular	Copper Alloy	2 A	Solder	Receptacle	2	0.049 in	1.25 mm	0.118 in	3 mm	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	7.25 mm 7.33 mm	-65 ░C	150 °C
Harwin Inc. G125-FV10605F2R	Gold	UL94 V-0	1.25 mm	0.049 in	All	Through Hole	Board to Board Cable	Green	Mating Flange Pick and Place Polarizing Key	6	Female Socket	0.203 Ám	8 Áin	0.207 in	5.25 mm	8 µin	0.203 µm	Gold	450 V	Circular	Copper Alloy	2 A	Solder	Receptacle	2	0.049 in	1.25 mm	0.118 in	3 mm	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	7.25 mm 7.33 mm	-65 ░C	150 °C
Harwin Inc. G125-FV11005F1P	Gold	UL94 V-0	1.25 mm	0.049 in	All	Through Hole	Board to Board Cable	Green	Jackscrews Pick and Place Polarizing Key	10	Female Socket	0.203 Ám	8 Áin	0.207 in	5.25 mm			Gold		Circular	Copper Alloy	2 A	Solder	Receptacle	2	0.049 in	1.25 mm			Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)		-65 ░C	150 °C	Automotive General Purpose
Harwin Inc. G125-FV10605L0P	Gold	UL94 V-0	1.25 mm	0.049 in	All	Through Hole	Board to Board Cable	Green	Pick and Place Polarizing Key	6	Female Socket	0.203 Ám	8 Áin	0.207 in	5.25 mm			Gold		Circular	Copper Alloy	2 A	Solder	Receptacle	2	0.049 in	1.25 mm	0.118 in	3 mm	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)		-65 ░C	150 °C	Automotive General Purpose	Latch Holder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.45
		10	$ 12.52
		100	$ 12.11
Newark	Each (Supplied on Cut Tape)	10	$ 12.66
		25	$ 12.47
		50	$ 12.29
		100	$ 12.11

Description

General part information

G125-FV1 Series

6 Position Receptacle Connector 0.049" (1.25mm) Through Hole Gold

Documents

Technical documentation and resources

G125 Spec Sheet

Datasheet

G125-2040696L0

G125-224069600

G125-FV10605F1P
