Connectors, Interconnects

307-034-459-207

Active

EDAC Inc.

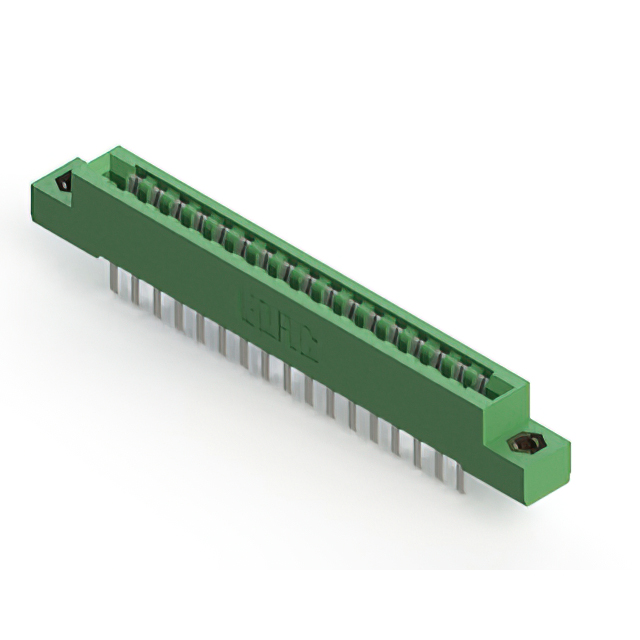

CONN EDGE DUAL FMALE 34POS 0.156

Connectors, Interconnects

307-034-459-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 34POS 0.156

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-034-459-207

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	M3, Flush Mount, Top Opening, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	17, 34
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder
Termination Rows	2 rows

307-034 Series

...

Part	Gender	Flange Feature	Pitch	Number of Positions	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Number of Rows	Contact Material	Card Thickness (Min)	Card Thickness (Max)	Contact Finish Thickness	Features	Contact Finish	Color	Termination	Card Type	Read Out	Contact Type	Material - Insulation	Termination Rows	Flange Feature Diameter
EDAC Inc. 307-034-558-268	Female	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	17 34	Right Angle Through Hole	-40 °C	105 °C	2	Copper Alloy	0.054 in	0.07 in	10 Ąin	Card Guides	Gold	Green	Solder Wire Wrap	Dual Edge Non Specified	Dual	Semi Bellows	Polyester Thermoplastic	2 rows
EDAC Inc. 307-034-460-268	Female	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	17 34	Board Edge Straddle Mount	-40 °C	105 °C	2	Copper Alloy	0.054 in	0.07 in		Card Extender Card Guides	Tin	Green	Solder	Dual Edge Non Specified	Dual	Semi Bellows	Polyester Thermoplastic	2 rows
EDAC Inc. 307-034-453-158	Female	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	34 68	Right Angle Through Hole	-40 °C	105 °C	2	Copper Alloy	0.054 in	0.07 in		Card Guides	Tin	Green	Solder	Dual Edge Non Specified	Dual	Semi Bellows	Polyester Thermoplastic	1 rows
EDAC Inc. 307-034-553-103	Female	Floating Bobbin Flush Mount	0.156 in	34 68	Right Angle Through Hole	-40 °C	105 °C	2	Copper Alloy	0.054 in	0.07 in	10 Ąin		Gold	Green	Solder	Dual Edge Non Specified	Dual	Semi Bellows	Polyester Thermoplastic	1 rows	0.116 in
EDAC Inc. 307-034-459-207	Female	Flush Mount M3 Threaded Insert Top Opening	0.156 in	17 34	Right Angle Through Hole	-40 °C	105 °C	2	Copper Alloy	0.054 in	0.07 in			Tin	Green	Solder	Dual Edge Non Specified	Dual	Semi Bellows	Polyester Thermoplastic	2 rows
EDAC Inc. 307-034-458-178	Female	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	34	Right Angle Through Hole	-40 °C	105 °C	1	Copper Alloy	0.054 in	0.07 in		Card Guides	Tin	Green	Solder	Non Specified Single Edge	Single	Semi Bellows	Polyester Thermoplastic	1 rows
EDAC Inc. 307-034-500-208	Female	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	17 34	Through Hole	-40 °C	105 °C	2	Copper Alloy	0.054 in	0.07 in	10 Ąin		Gold	Green	Solder Eyelet(s)	Dual Edge Non Specified	Dual	Semi Bellows	Polyester Thermoplastic	2 rows
EDAC Inc. 307-034-525-108	Female	4-40 Flush Mount Threaded Insert Top Opening	0.156 in	34	Through Hole	-40 °C	105 °C	1	Copper Alloy	0.054 in	0.07 in	10 Ąin		Gold	Green	Solder	Non Specified Single Edge	Single	Semi Bellows	Polyester Thermoplastic	1 rows
EDAC Inc. 307-034-459-203	Female	Floating Bobbin Flush Mount	0.156 in	17 34	Right Angle Through Hole	-40 °C	105 °C	2	Copper Alloy	0.054 in	0.07 in			Tin	Green	Solder	Dual Edge Non Specified	Dual	Semi Bellows	Polyester Thermoplastic	2 rows	0.116 in
EDAC Inc. 307-034-459-107	Female	Flush Mount M3 Threaded Insert Top Opening	0.156 in	34	Right Angle Through Hole	-40 °C	105 °C	1	Copper Alloy	0.054 in	0.07 in			Tin	Green	Solder	Non Specified Single Edge	Single	Semi Bellows	Polyester Thermoplastic	1 rows
