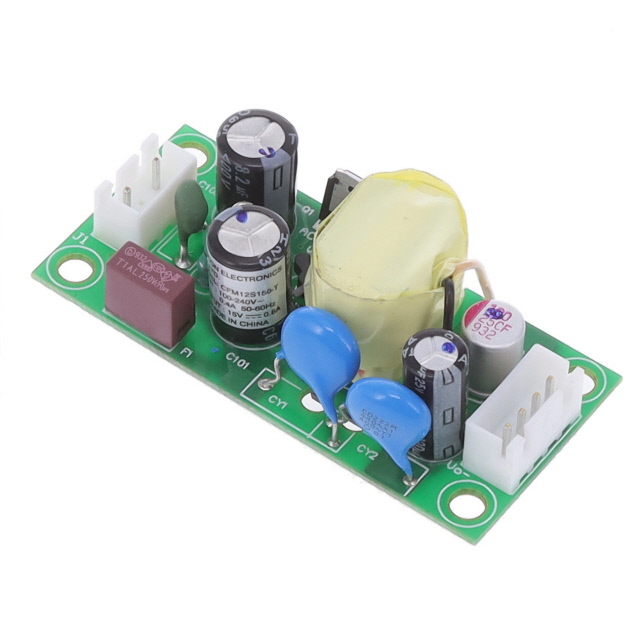

CFM12S150-T

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 15V 12W

Search across all available documentation for this part.

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 15V 12W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	CFM12S150-T	CFM12 Series

Applications	ITE (Commercial)	Household Appliances, ITE (Commercial)
Approval Agency	cURus, FCC, NEMKO, CE	cURus, FCC, NEMKO, CE
Current - Output 1	-	1.34 A
Current - Output 1	-	1 - 500 mA
Efficiency	85 %	85 - 87 %
Features	Universal Input	Universal Input
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	75 ¯C	75 ¯C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	12 W	12 W
Size / Dimension [x]	54.6 mm, 2.15 in	2.15 - 54.6 mm
Size / Dimension [y]	25.4 mm	25.4 mm
Size / Dimension [z]	0.68 in, 17.3 mm	0.68 - 17.3 in
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	15 V	9 - 24 V

AC/DC CONVERTER 9V 12W

Part	Type	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features	Applications	Voltage - Isolation	Approval Agency	Power (Watts)	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1 [custom]	Voltage - Output 1	Mounting Type	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]
Cincon Electronics Co. LTD CFM12S090-T	Open Frame	1	2.15 in, 54.6 mm	0.68 in, 17.3 mm	25.4 mm	Universal Input	Household Appliances, ITE (Commercial)	3000 V	CE, cURus, FCC, NEMKO	12 W	85 %	90 VAC	264 VAC	1.34 A	9 V	Chassis Mount
Cincon Electronics Co. LTD CFM12S240-T	Open Frame	1	2.15 in, 54.6 mm	0.68 in, 17.3 mm	25.4 mm	Universal Input	Household Appliances, ITE (Commercial)	3000 V	CE, cURus, FCC, NEMKO	12 W	87 %	90 VAC	264 VAC		24 V	Chassis Mount	500 mA
Cincon Electronics Co. LTD CFM12S150-T	Open Frame	1	2.15 in, 54.6 mm	0.68 in, 17.3 mm	25.4 mm	Universal Input	ITE (Commercial)	3000 V	CE, cURus, FCC, NEMKO	12 W	85 %	90 VAC	264 VAC		15 V	Chassis Mount		-40 °C	75 ¯C
Cincon Electronics Co. LTD CFM12S120-T	Open Frame	1	2.15 in, 54.6 mm	0.68 in, 17.3 mm	25.4 mm	Universal Input	Household Appliances, ITE (Commercial)	3000 V	CE, cURus, FCC, NEMKO	12 W	85 %	90 VAC	264 VAC		12 V	Chassis Mount	1 A
