N4626-2300-RB

Active

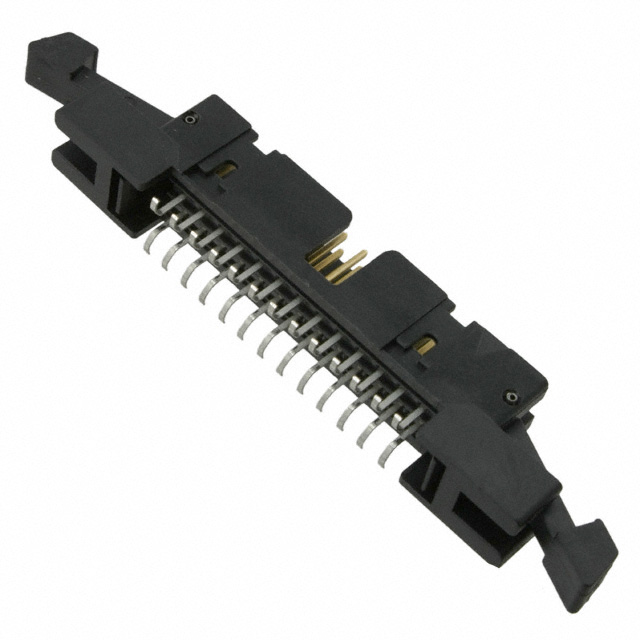

CONN HEADER SMD 26POS 2.54MM

Search across all available documentation for this part.

Active

CONN HEADER SMD 26POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	N4626-2300-RB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	300 µin
Contact Finish Thickness - Post	7.62 µm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.25 A
Fastening Type	Latch Lock/Eject Hooks, Long
Insulation Color	Black
Insulation Height	0.525 in
Insulation Height	13.34 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

CONN HEADER SMD 26POS 2.54MM

Part	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Material	Fastening Type	Contact Type	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Number of Positions	Mounting Type	Material Flammability Rating	Insulation Height	Insulation Height	Number of Positions Loaded	Style	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Rows	Insulation Color
3M N4626-2300-RB	Gold	105 ░C	-55 °C	1.25 A	Shrouded - 4 Wall	300 µin	7.62 µm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Copper Alloy	Latch Lock/Eject Hooks, Long	Male Pin	Solder	2.54 mm	0.1 in	Header	26	Surface Mount	UL94 V-0	0.525 in	13.34 mm	All	Board to Cable/Wire	0.1 in	2.54 mm	Square	30 Áin	0.76 Ám	Tin	2	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Surface Mount 26 position 0.100" (2.54mm)
