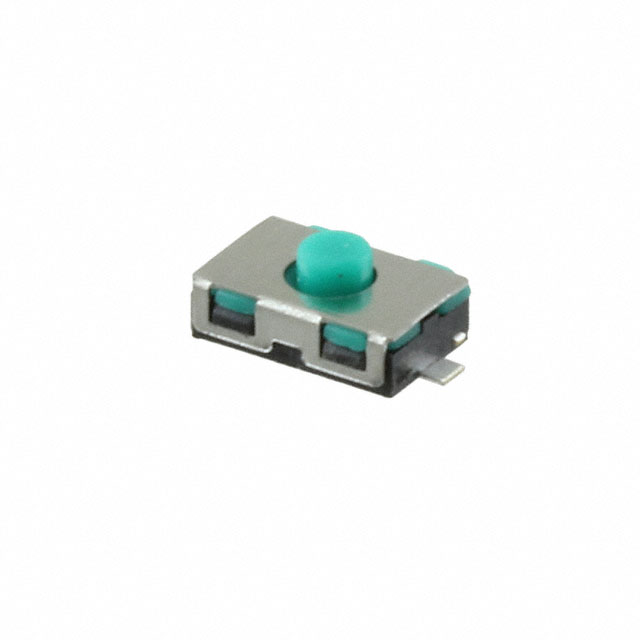

FSMSMLPAATR

Active

TE Connectivity Raychem Cable Protection

SWITCH TACTILE SPST-NO 0.05A 32V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH TACTILE SPST-NO 0.05A 32V

Technical Specifications

Parameters and characteristics for this part

Specification	FSMSMLPAATR

Actuator Height off PCB, Vertical [z]	2.5 mm
Actuator Material	Silicone Rubber
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Force	520 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6 mm
Outline [y]	4 mm
Switch Function	Off-Mom
Switch Travel	0.5 mm
Termination Style	Gull Wing

Part	Termination Style	Outline [x]	Outline [y]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Contact Rating @ Voltage	Mounting Type	Switch Function	Actuator Material	Actuator Height off PCB, Vertical [z]	Illumination	Switch Travel	Mechanical Life	Actuator Orientation	Circuit	Operating Force
TE Connectivity Raychem Cable Protection FSMSMLPAATR	Gull Wing	6 mm	4 mm	85 °C	-40 °C	Standard	0.05 A	Surface Mount	Off-Mom	Silicone Rubber	2.5 mm	Non-Illuminated	0.5 mm	100000 Cycles	Top Actuated	SPST-NO	520 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
